Product Description

The MaxiDiag MD808 Pro is built to take your diagnostic experience to a whole new level. Loaded with oil service reset, battery registration and reset, parking brake pad relearn after replacement, steering angle sensor relearn and diesel particulate filter regeneration functions, MD808 Pro can access ALL available modules for the best diagnosis operations. With all that enclosed in a 4-inch hand-held device, there is no better multifunctional scan tool on the market.


MaxiDiag MD808 Pro  Features:

1. Support Read/Clear Codes and Live Data functions for ALL systems
2. Read and clear trouble codes, control and test BMS/Oil Reset/ SRS/EPB/DPF systems
3. Support oil service reset
4. Support battery registration and reset
5. Diesel particulate service including forced regeneration
6. Reset steering angle sensor (SAS) functionality
7. Relearn parking brake pad after replacement
8. Reset service mileage and service intervals
9. Turn off ECU brake warning light
10. Perform O2 monitor, on-board monitor, I/M readiness and component testing
11. Print diagnostic reports via PC connection
12. Global OBD II coverage for U.S. domestic, Asian and European makes and models
13. All OBD II protocols, all 10 test modes and enhanced OBD II mode 6 support
14. Update: Free Software updating for lifetime

MaxiDiag MD808 Pro Specifications

Processor   ARM® Thumb® Processor (400 MHz)
Memory   32MB, 166 MHz
Display   4.0 inch LCD with 800x480 resolution
Connectivity   Mini USB: 2.0 Micro SD Card (16GB)
Power Consumption   1.7 W
Operating Temperature   -10°C to 60°C (14°F to 140°F)
Storage Temperature   -20°C to 70°C (-4°F to 158°F)
Operating Humidity   5% - 95% non-condensing
Housing   Strong plastic housing with protective rubber boot
Dimensions (W x H x D)   202 mm x 92 mm x 35 mm (8.35" x 3.62" x 1.4")
Weight   313 g (0.69 lb.)

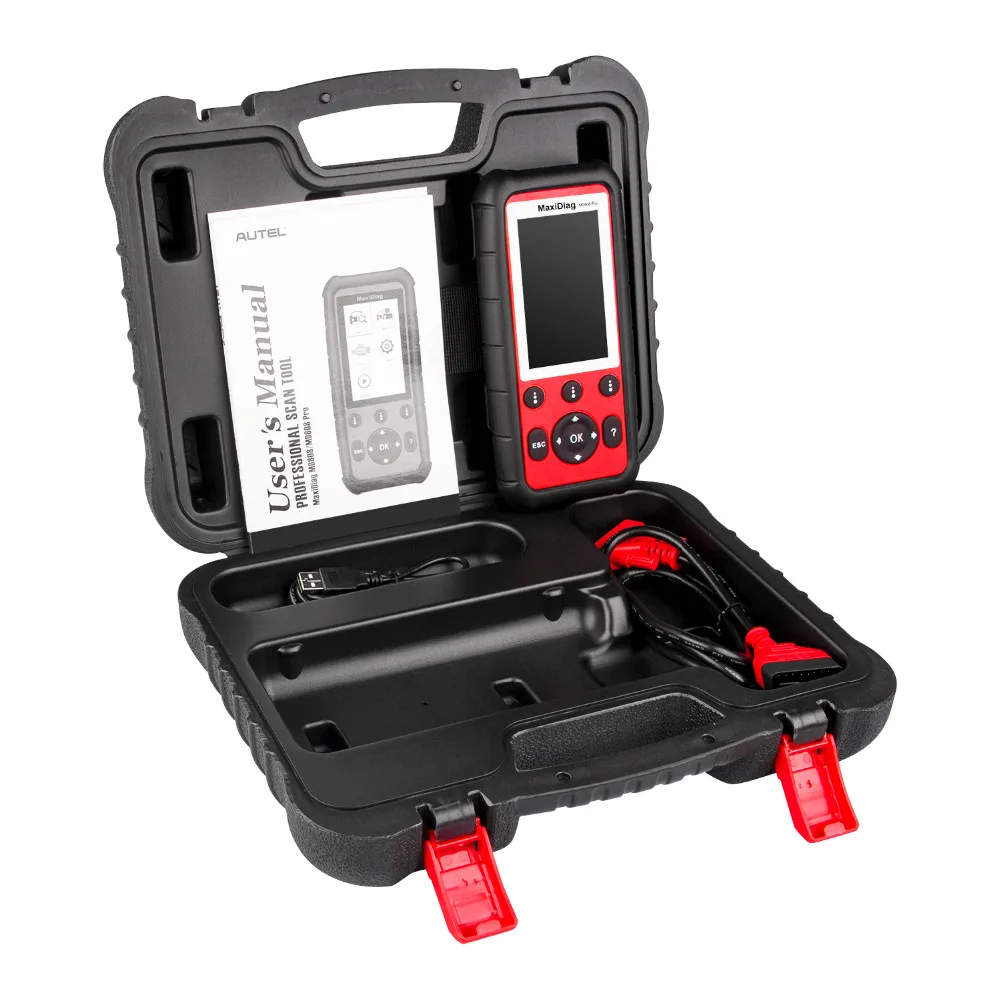

Accessories:
1. User Manual
2. Quick Reference Guide
3. Main cable
4. Micro SD card
5. Carry case
6. USB Cable
