Product Name:MST12000 Universal Automotive Test Platform and ECU Signal Simulation Electronic Bench for diesel and gasoline
Product Type:MST12000
Product Category:ECU Chip Tunning
View Count:
Product Description

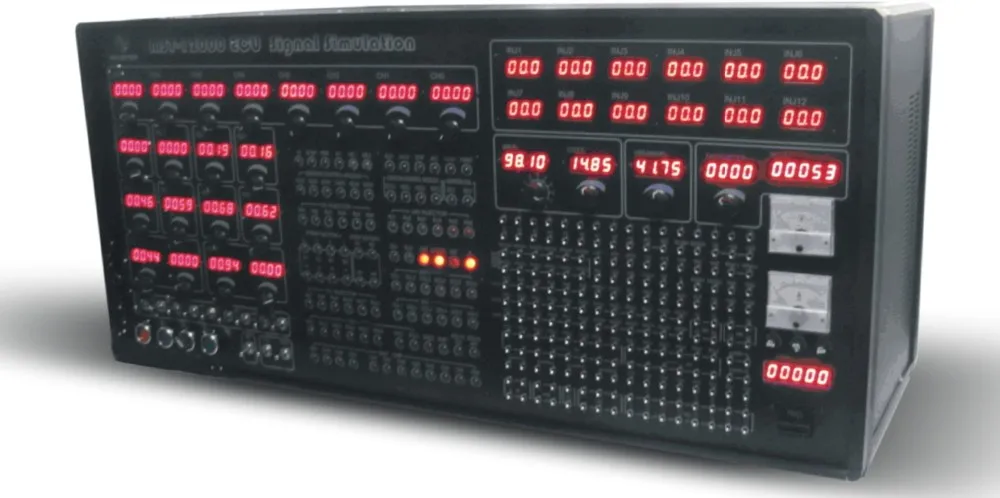

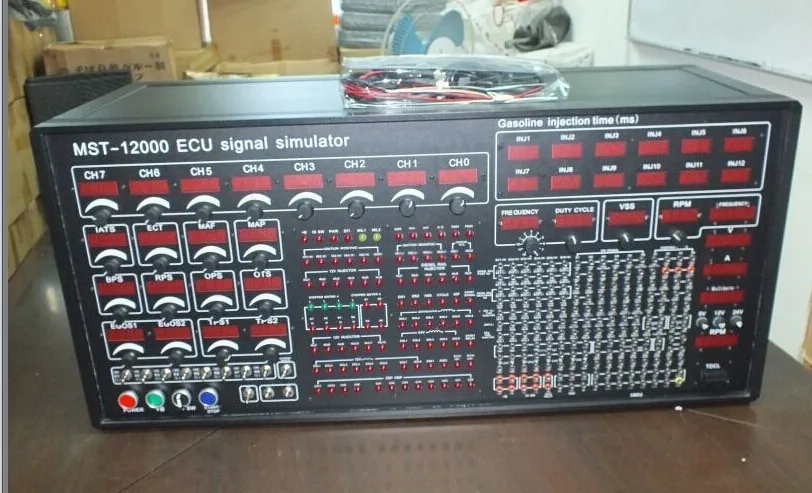

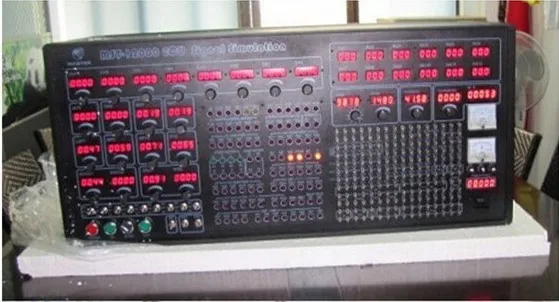

MST-12000 Universal Automotive Test Platform and ECU Signal Simulation

MST-12000 6

MST-12000 2

MST-12000 10

MST-12000 11





Feature of MST-12000 Automotive Test Platform:

1. The all cars crankshaft signal simulation expert:

Twelve way set arbitrary waveform output, can produce all of today's car engine crankshaft, camshaft signal (Hall, magnetoelectric, photoelectric signal), waveform data will
be pre-served by computer for long term.

2. All magnetoelectric crankshaft signal will be isolated by transformer, ensure no interference between signals.

3. The whole series of car sensor signal simulation expert:

The rotational speed signal, the speed signal (Hall, magnetoelectric, photoelectric signal), the ABS wheel speed signal, oxygen sensor signal, throttle valve, the accelerator
pedal signal, air flow meter, the intake pressure sensor (analog, digital), knock sensor etc signals simulation.

4. The All cars actuator drive experts:

Tachometer, odometer, blower control module, ignition module, frequency and pulse width control solenoid valve, car audio power amplifier.

5. The All cars actuator simulation expert

Diesel common rail injector, rail pressure control valve, ignition coil, injector, idle stepper motor, ultrasonic generator,etc actuator simulation.

MST-12000 Automotive Test Platform Fuctions:

The user can set crankshaft of different types according to different independent engine control system
1). The signal output (applicable to all car models of computer driven)
2). Automatic transmission input/output shaft signal simulation
3). Set to write into the waveform data directly
4). Engine revolving speed signal output
5). The speed signal output (hall signals, magnetoelectric)
6). Three or four channel ABS wheel speed signal output
7). Computer board working current test
8). EGR solenoid valve simulation
9). CANP Canister Purge solenoid simulation
10). Tachometer simulation and drive
11). Blower control module driver
12). Auxilliary air regulator simulation
13). Stepping motor simulation(Four/Six line)
14). Fuel injector simulation
15). Ignition coil simulation
16). The ignition module simulation
17). Reversing radar (ultrasonic) probe drive
18). The shift valve of automatic transmission simulation
19). Diesel injector simulation
20). Rail pressure regulator simulation
21). Shift quality valve simulation
22). Oil pressure regulating valve simulation
23). Water temperature, air temperature, outdoor temperature and evaporation temperature sensor signal simulation
24). Oxygen sensor signal simulation (manual)
25). The accelerator pedal double channel signal simulation
26). Throttle signal simulation
27). CANP Canister purge solenoid simulation
28). Air flow meter,manifold Absolute Pressure Sensor (analog, digital) signal simulation
29). Brake switch simulation
30). Clutch switch simulation
31). A\C request signal simulation
32). A\C relay simulation
33). Fule pump relay simulation
34). Radiator fan relay simulation
35). Audio signal output, power amplifier drive
36). Steering pressure switch simulation
37). Fuel injection pulse width measurement
38). Central door lock server simulation
39). Anti theft resistance simulation
40). Knock sensor signal simulation
41). Computer board working current test
42). User extensional functions

MST-12000 Instrument parameters:

1. Can set the waveform output: It can set twelve channels waveform output arbitrary, can simultaneously output crankshaft 1 º angle signal, the signal of cylinder detection,
TDC of cylinder 1 signal, camshaft signal, phase precision.This machine is applied to crankshaft and camshaft signal simulation of all vehicles worldwide; also applies
to the crankshaft and camshaft signal input, output simulation,and all of the automatic transmission input, output shaft signal simulation; ABS three or four channel wheel
speed signal simulation; computer set the waveform, and waveform can be long-term preservation;
2. Output signals: magnetoelectric signals, hall, photoelectric signal;
3. Duty cycle drive: duty cycle 1 ~ 99% continuous adjusting,frequency of 11 files regulation
4. The sensor signal simulation: resistance of 100 Ω ~10000 Ω voltage 0V~5V × 4 0V~1.5V
5. Actuator drive simulation: 69 channel output simultaneously

MST-12000 Instrument application:

1. Automobile sensor dynamic diagnosis, automobile engine, transmission, ABS, air conditioning, anti theft  and  other  computer repair,  auto teaching AIDS model driven, automobile production development;
2. The utility model is suitable for Germany, the United States, Japan, South Korea, and other domestic mini models etc hundreds of models

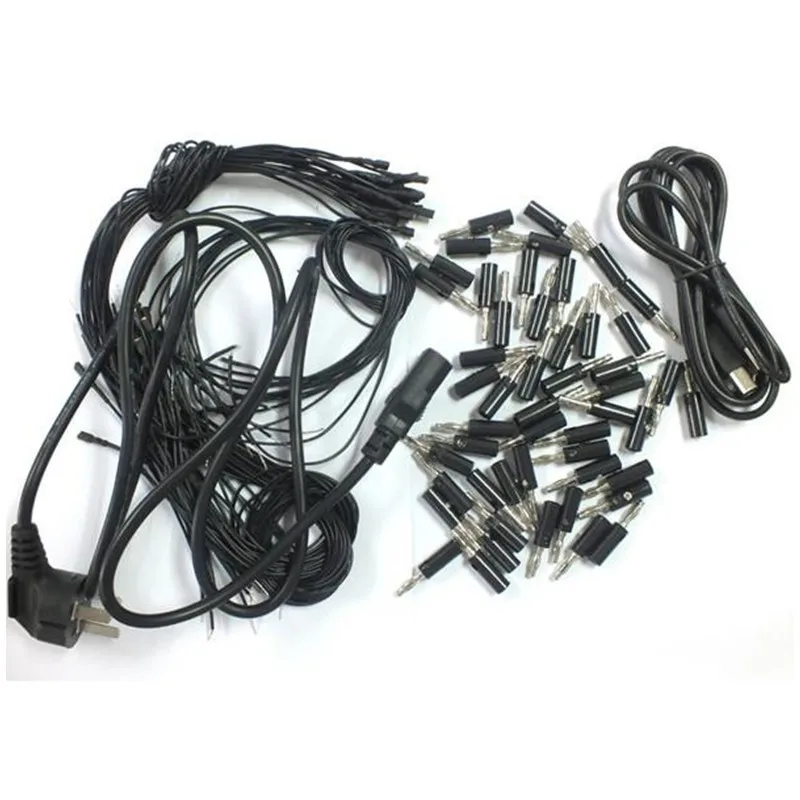

Packing list:

1set x The MST-12000 sensor signal simulator
60 pieces x The data line
1 piece x Power line
1 piece x The USB data line
1piece x Data disc
