Product Description

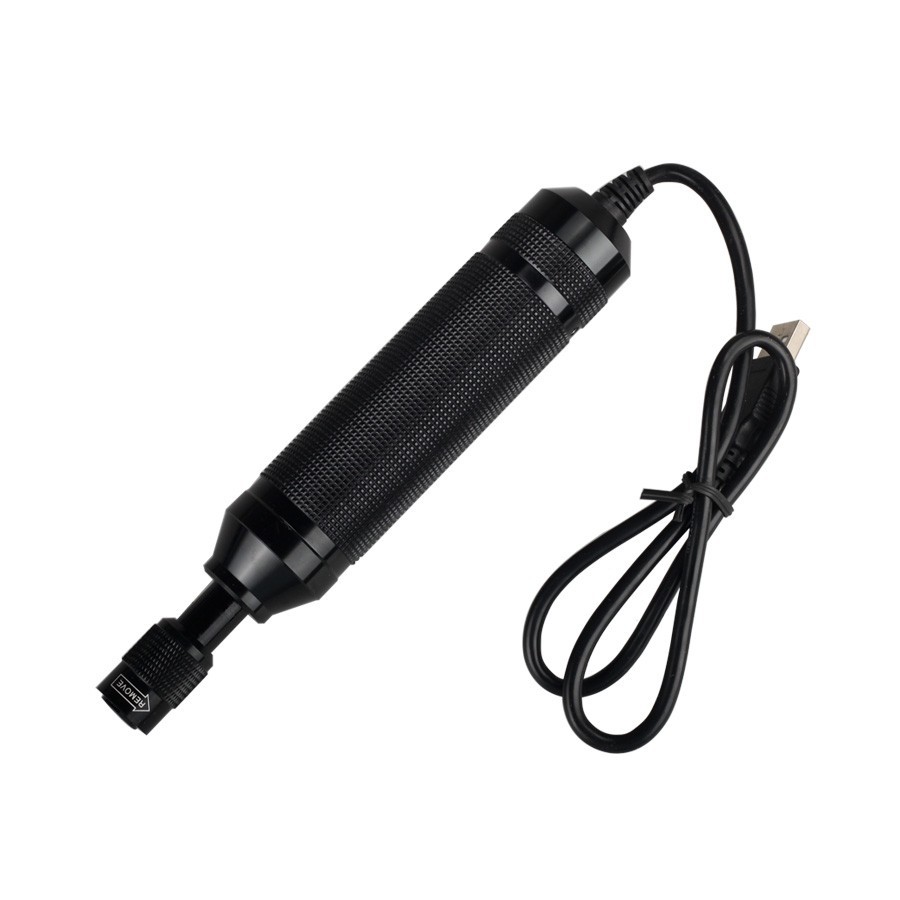

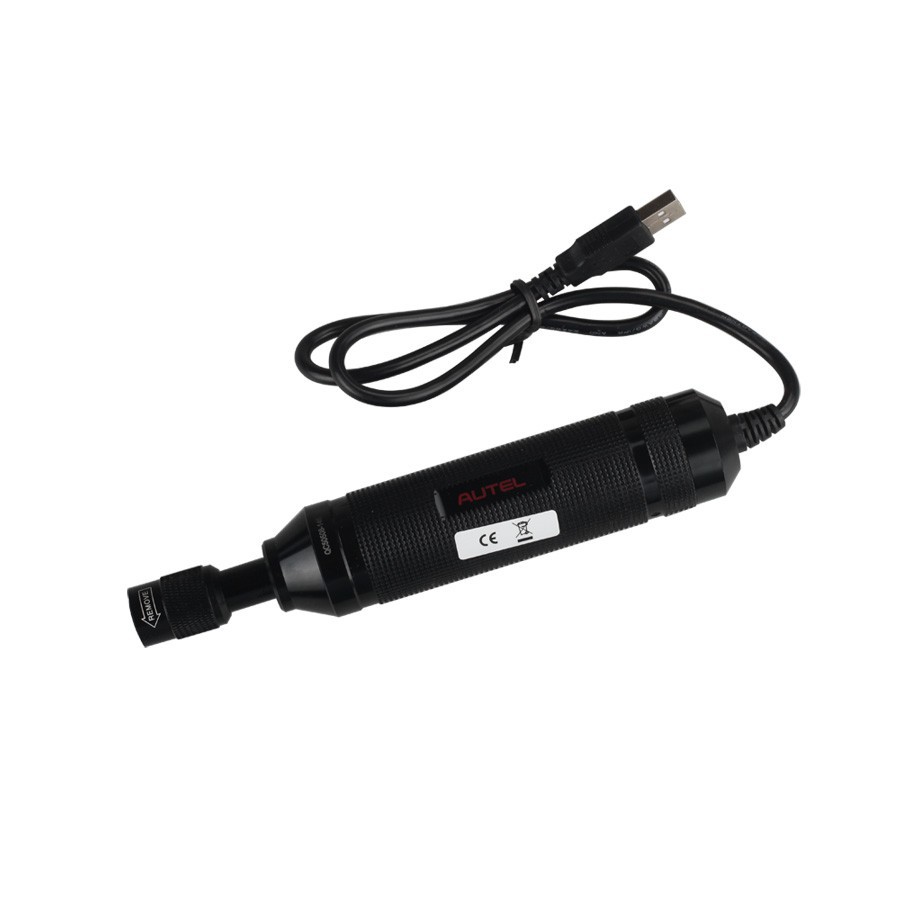

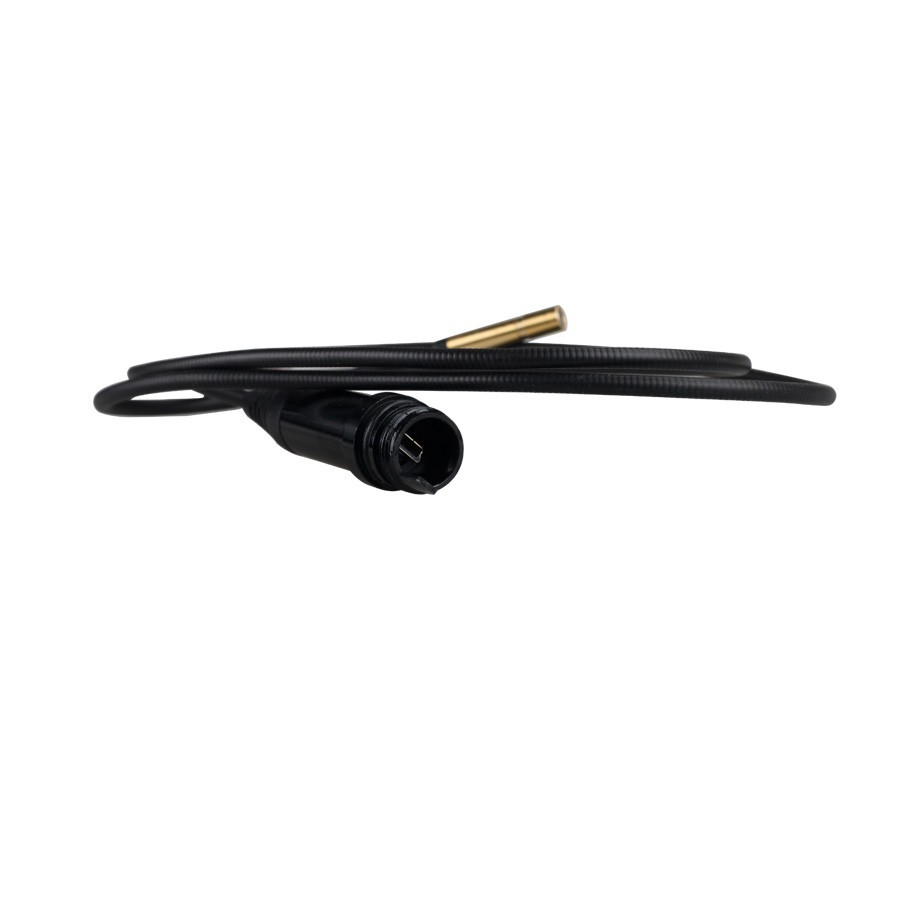

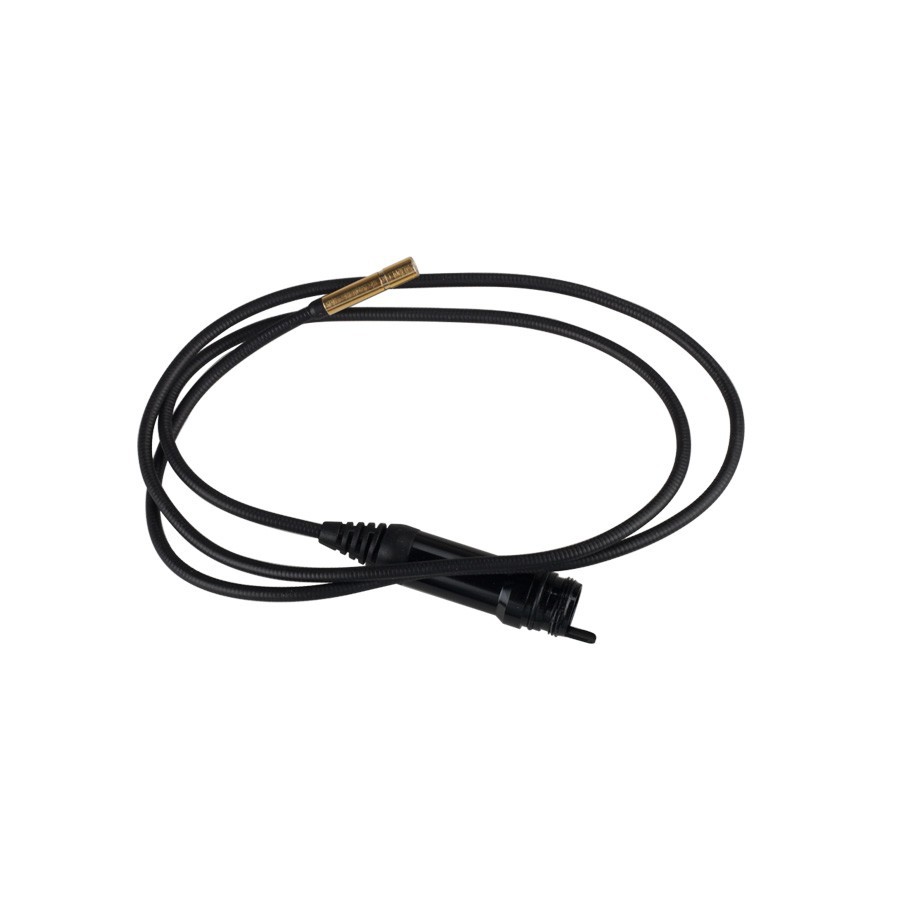

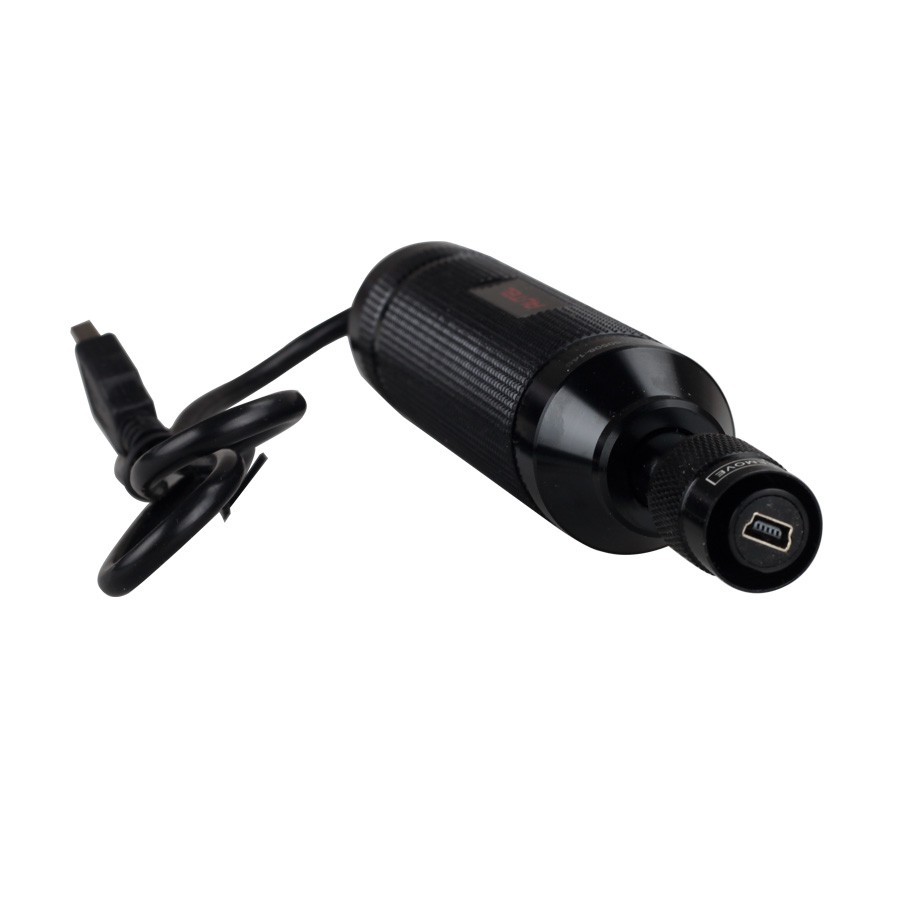

MaxiVideo MV105 5.5mm Digital Inspection Camera for MaxiSys Tablet Kit

MaxiVideo MV105 Digital Inspection Camera Features and Functions:

White LED lights to illuminate the inspection areas
Small diameter allows it to be used in the tight spaces
Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections
Powerful and perfect for inspecting most spark plug holes
Super bright LED and high resolution provide crystal clear images

MaxiVideo MV105 5.5mm Digital Inspection Camera Specifications:

Optimal Viewing Distance: 3/8’’ to 12’’ (0.95cm to 30cm)
Image Capture: MV105 (320 x 240)
Image Head:  5.5mm (0.22’’)
Operating Temperature: Main Unit: 0°C to 50°C (32°F to 122°F)
Cable: -10°C to 70°C (14°F to 158°F)
Storage Temperature: -20°C to 75°C (-4°F to 167°F)
Waterproof: Imager head and cable to 1m(3’)
Weight: 0.2kg with 5.5mm diameter imager head
Compliance: FCC (EMC), CE (EMC and LVD)

MaxiVideo MV105 Digital Inspection Camera Connection:


MaxiVideo MV105 5.5mm Digital Inspection Camera

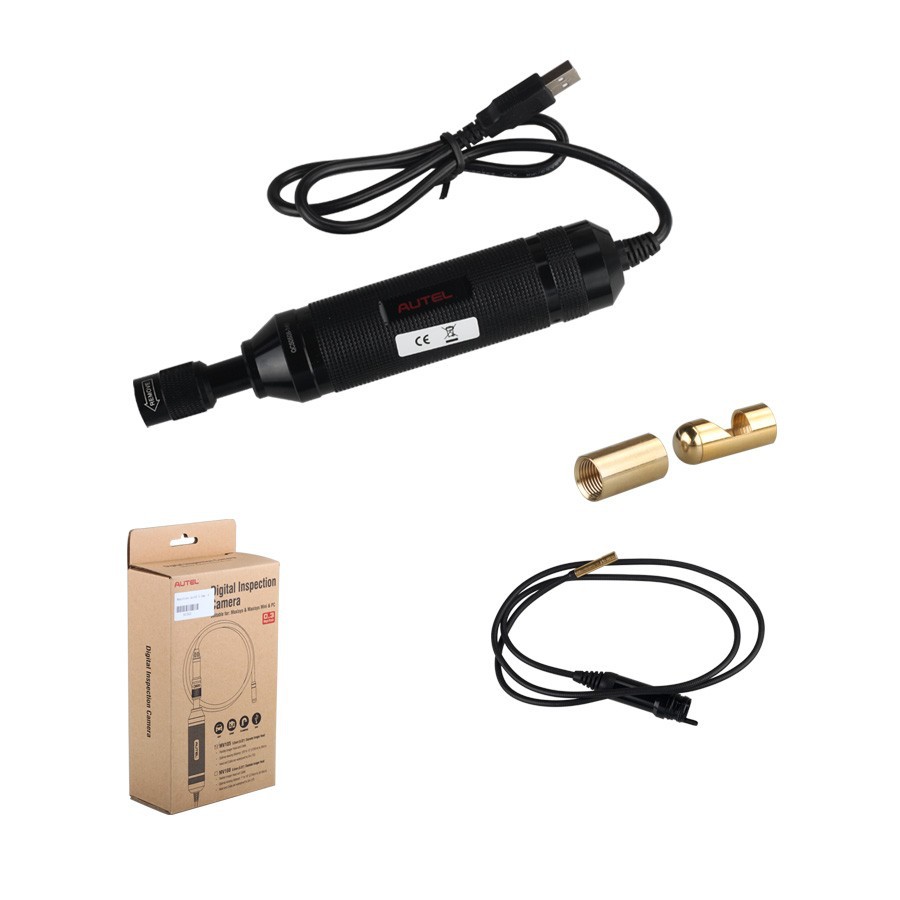

Package including:

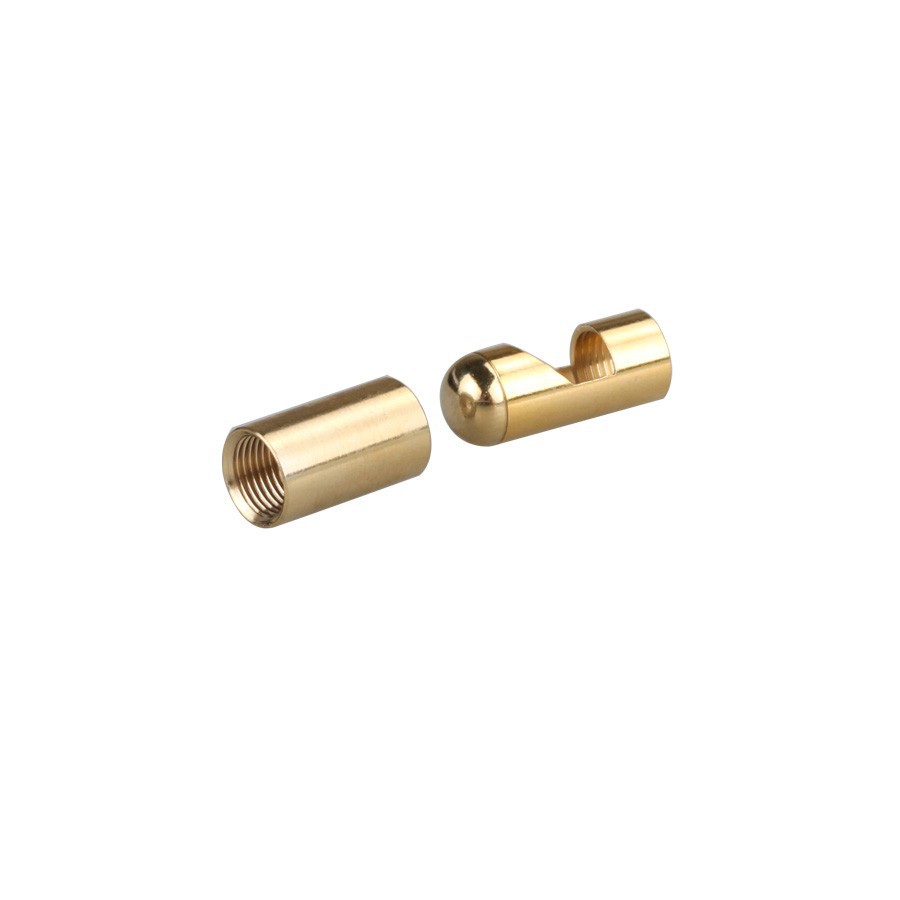

1pc x Magnet
1pc x Mirror
