Product Description

V3.002.032 Newest Version Honda HDS HIM Diagnostic Tool with Double Board

Highlights:

1. Software Version: V3.002.032 [Software need to be activated before using, we provide one time free activation.If you change computer, it will need reactivation and cost 10USD.
2. Support Honda Hybird Battery Vehicle Test.
3. Support VIN Reader and IMMO.
4. Test Coverage: Dynamical, Body, Chassis, ABS, SRS, Anti-theft, etc.
5. It supports CAN BUS system, and it can re-program the Auto ECU. This HIM is based on PC operation platform.

Honda HDS HIM Function:

1. Functions Supported by Honda/Acura Protocols

Reading and decoding fault codes from control blocks memory
Deleting fault codes
Displays system current parameters in digital form
Combined displaying of data
Management of executive devices
Logs keeping - writing and keeping of digital parameters in memory
Special functions - changing of permissible settings of blocks, programming etc.

2. Functions Supported by OBD-II Protocols

Mode $01 - Displays system current parameters in digital form (up to 8 parameters at once)
Mode $02 - Displays parameters of freeze frame
Mode $03 - Reading and decoding of fault codes from control block? memory
Mode $04 - Deleting of fault codes (memory clearing)
Mode $05 - Displays results of oxygen sensors
Mode $06 - Displays results of changeably controlled systems and components
Mode $07 - Displays results of constantly controlled systems and components
Mode $08 - Management of executive devices
Mode $09 - Displays car identification info

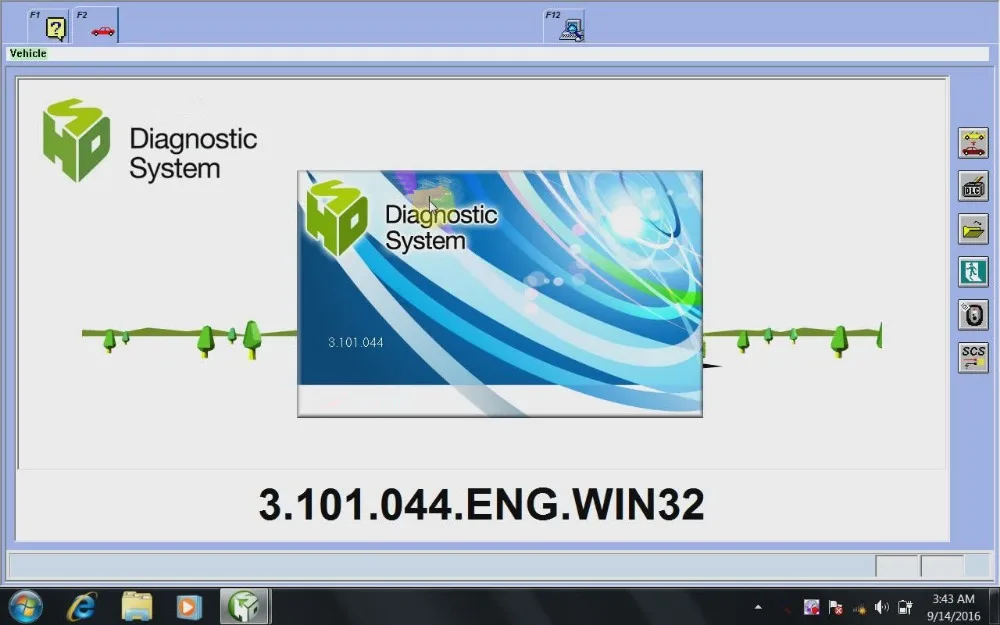

Software Display:

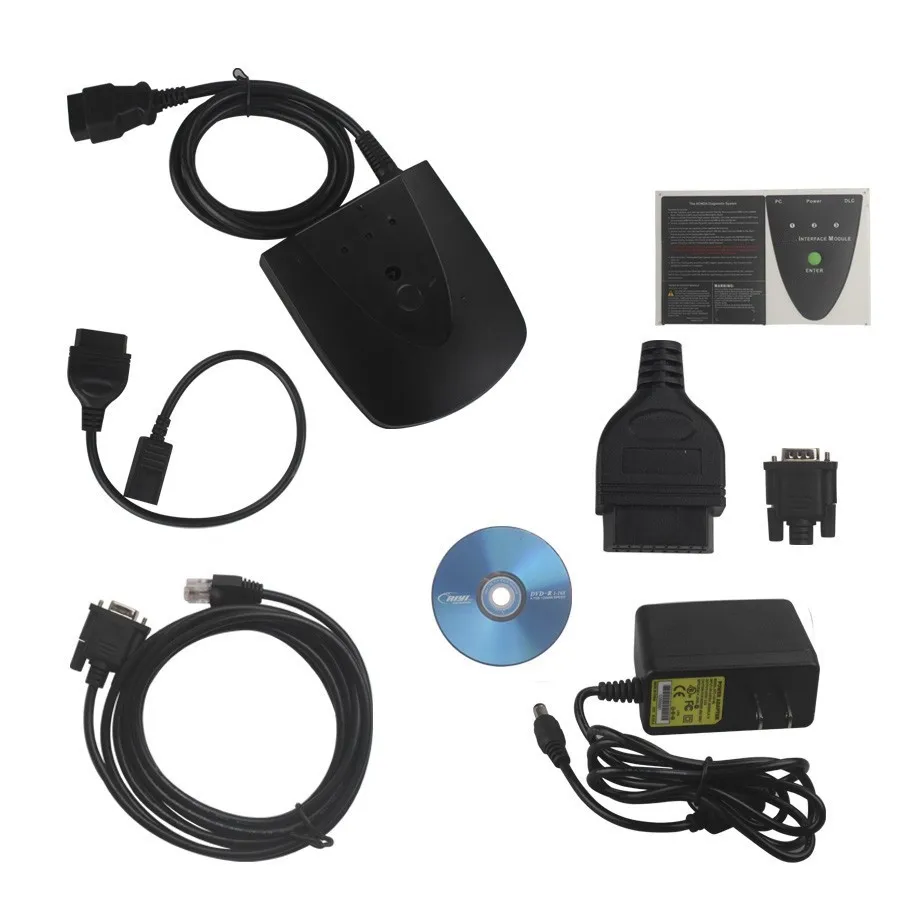

Package List:

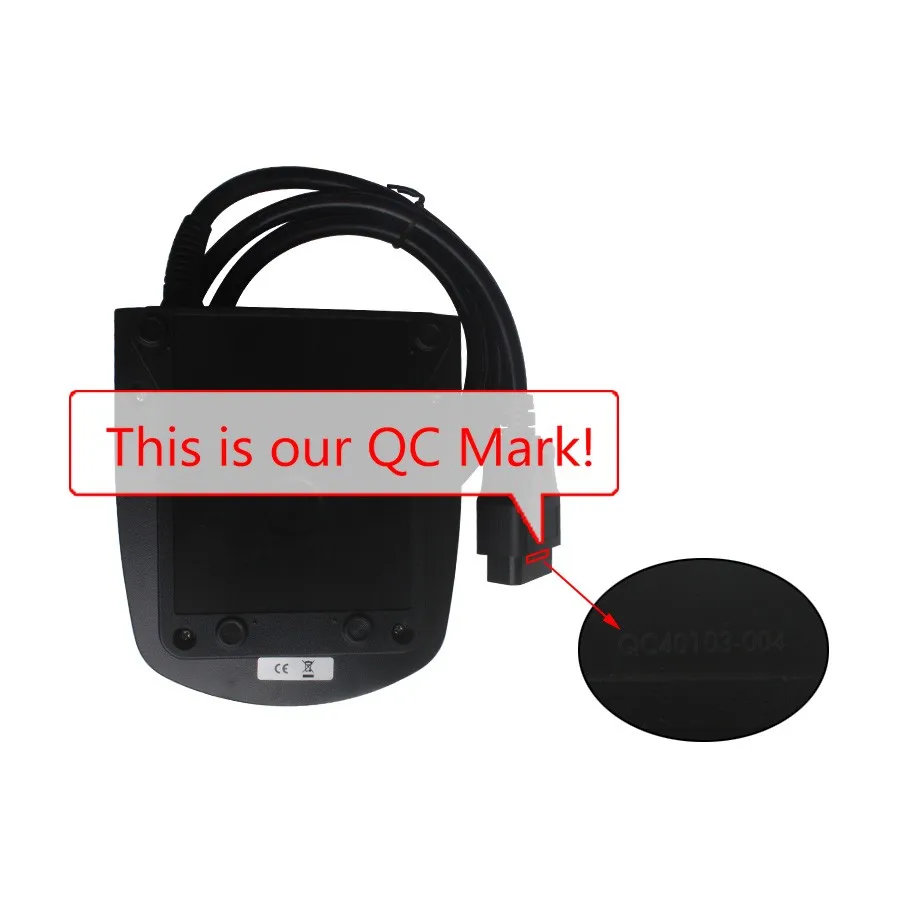

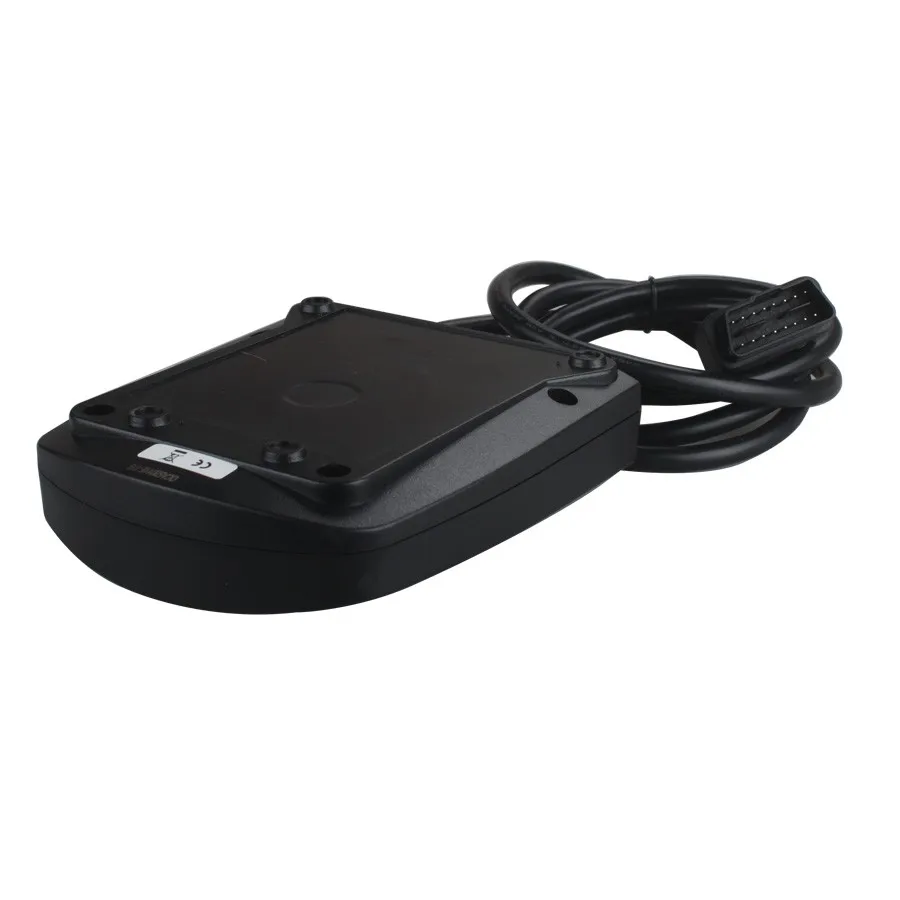

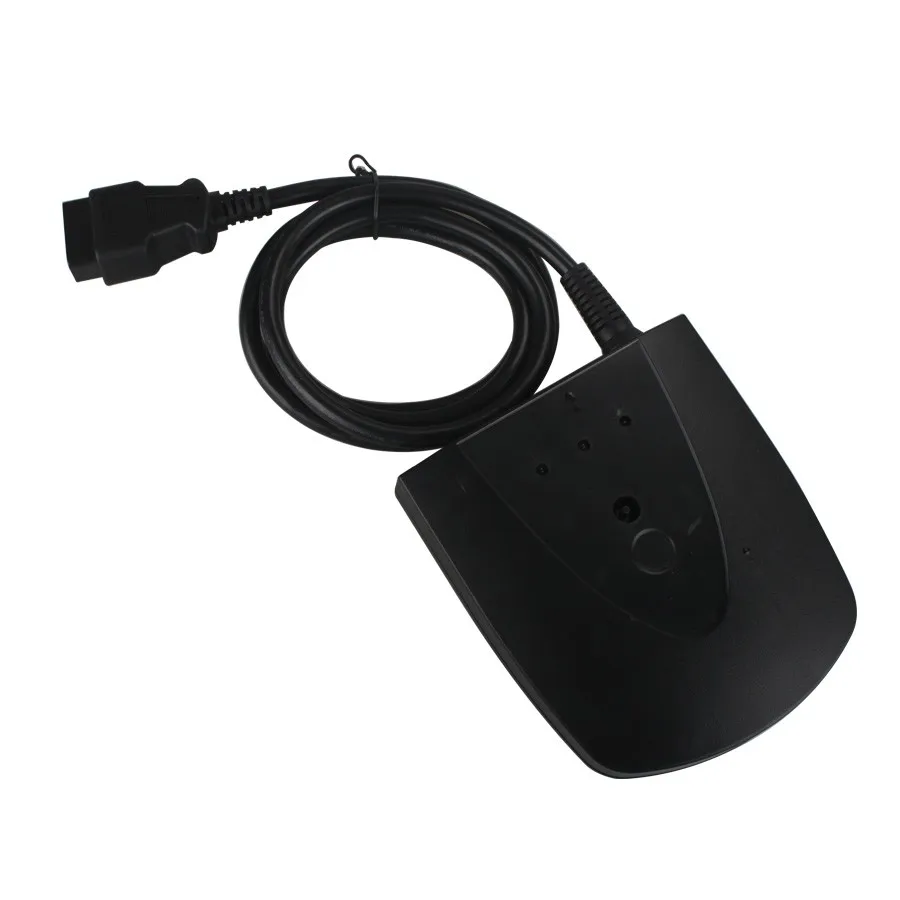

1 x HIM with OBD II Cable

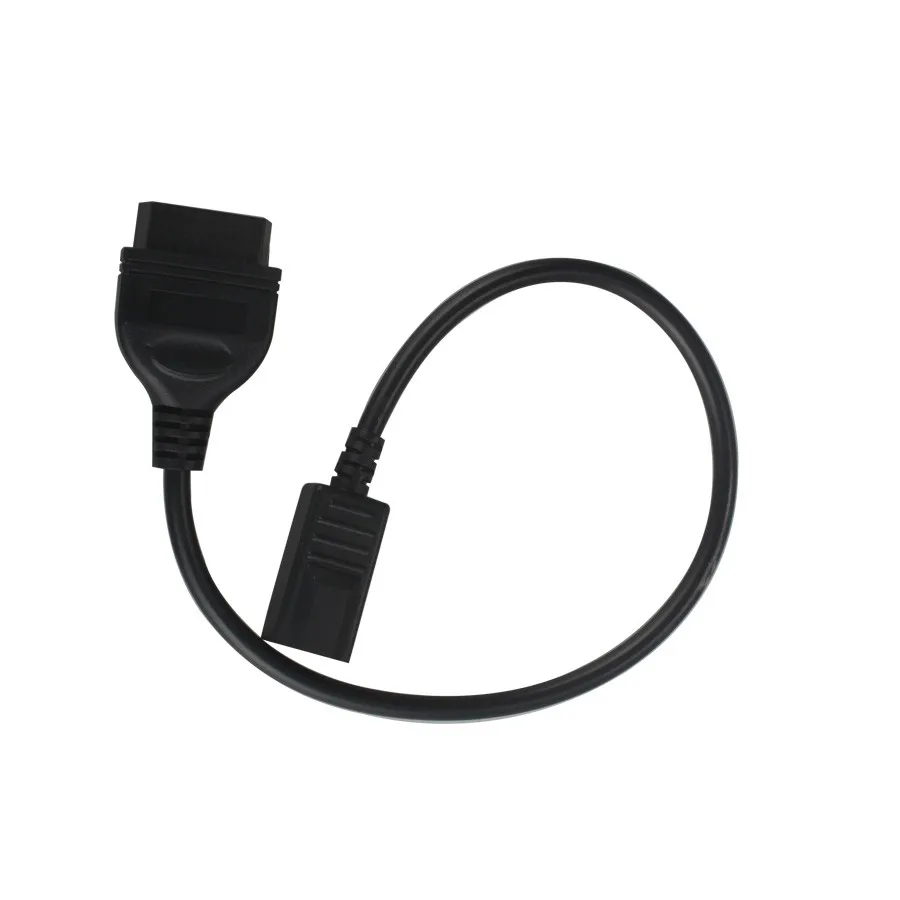

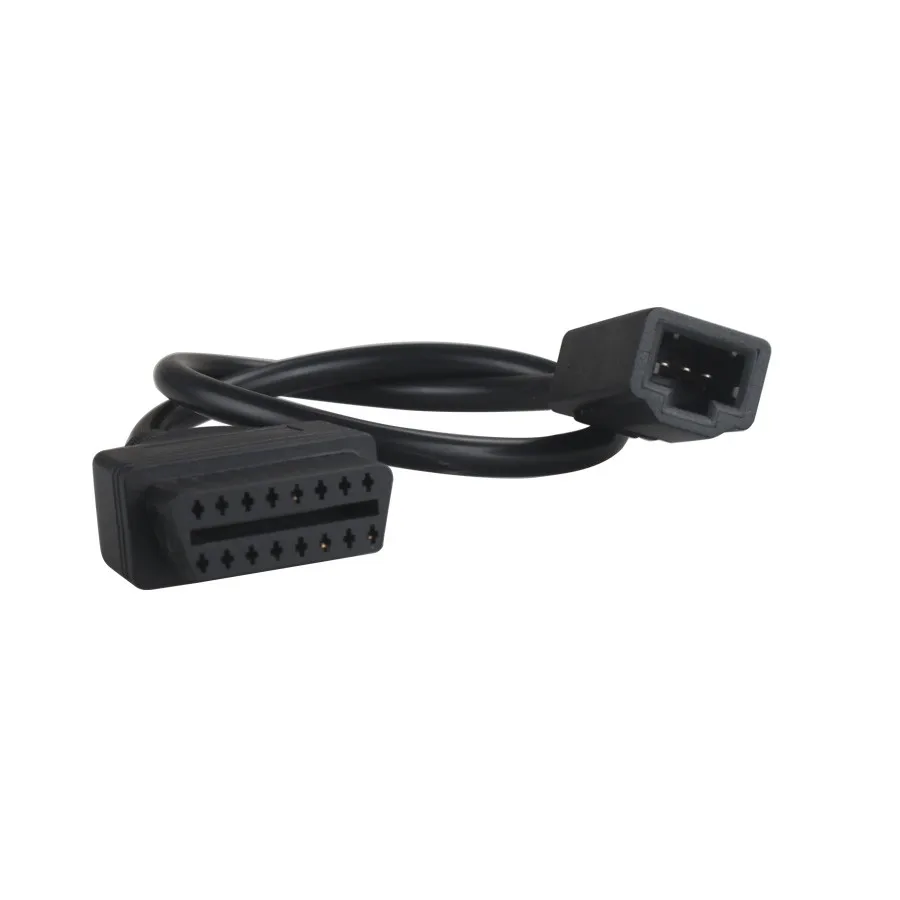

1 x 3 Pin Cable

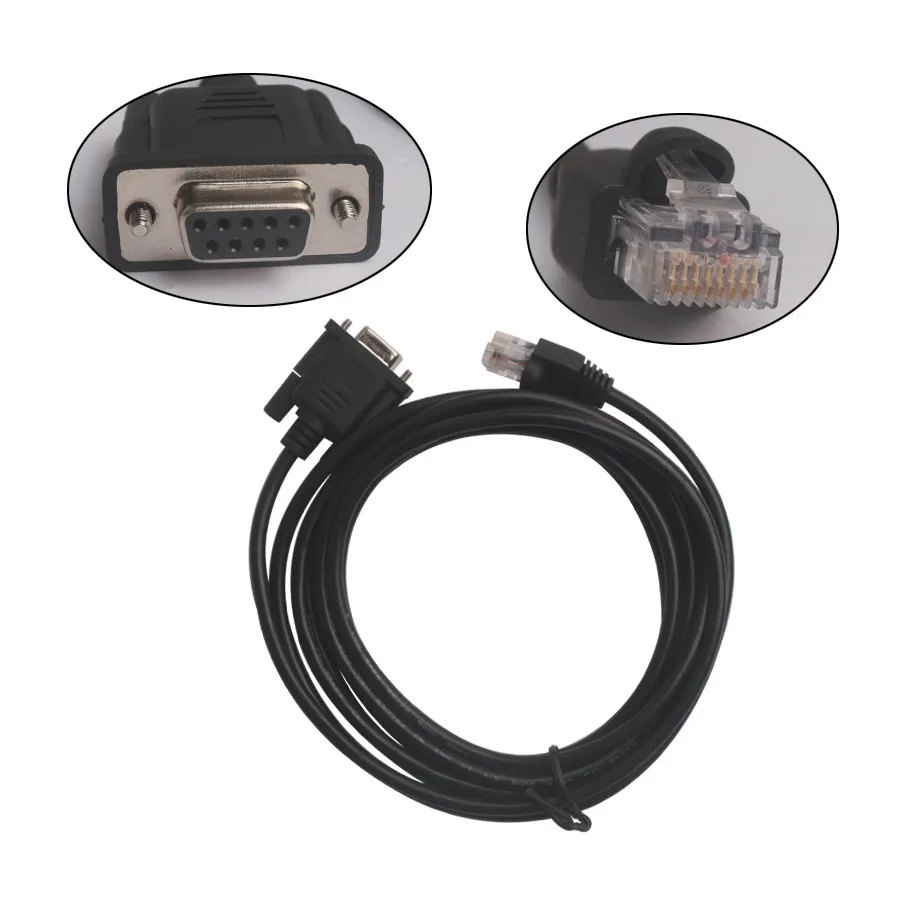

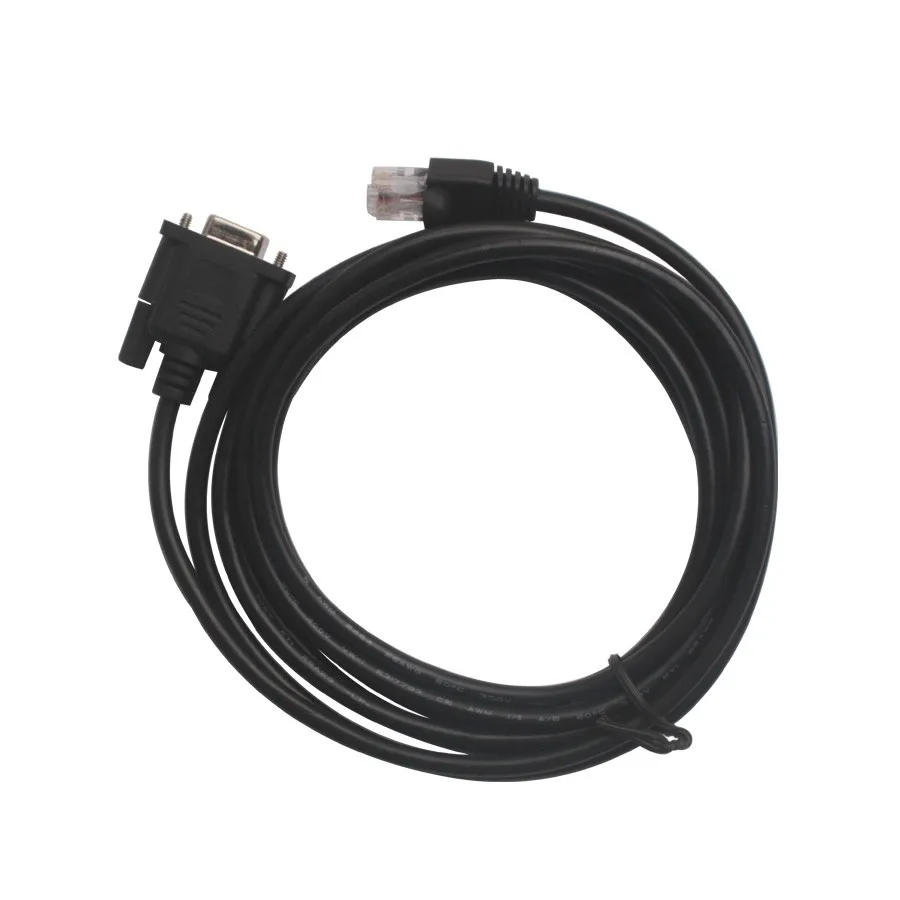

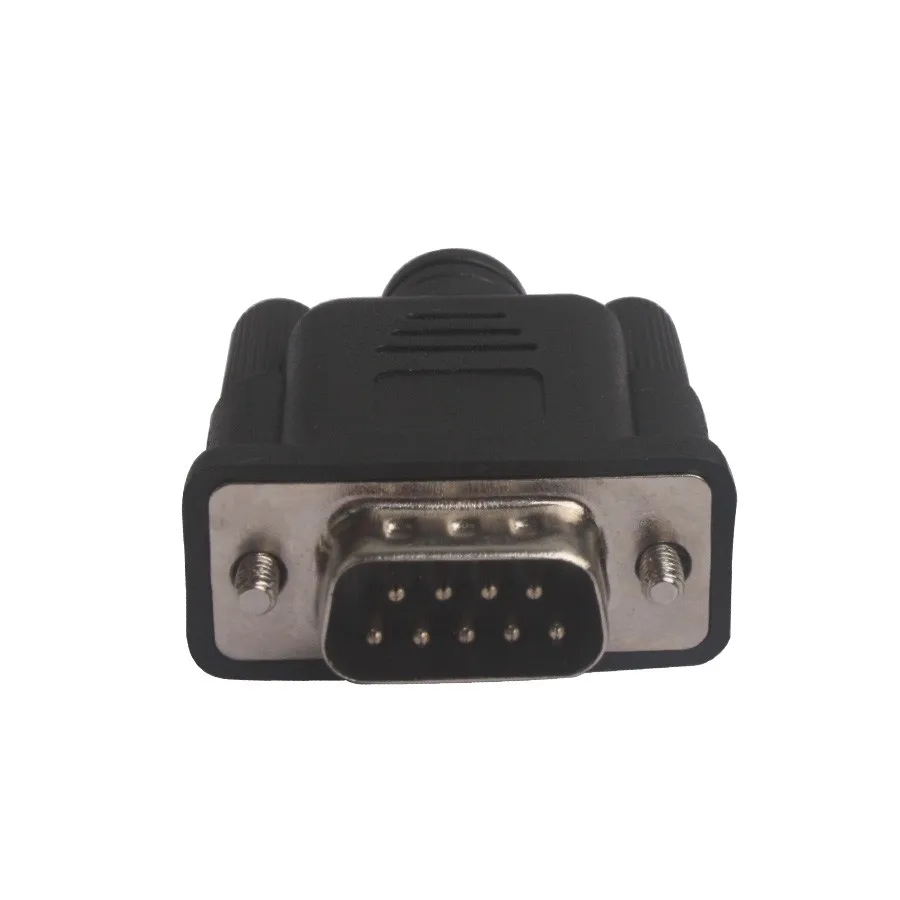

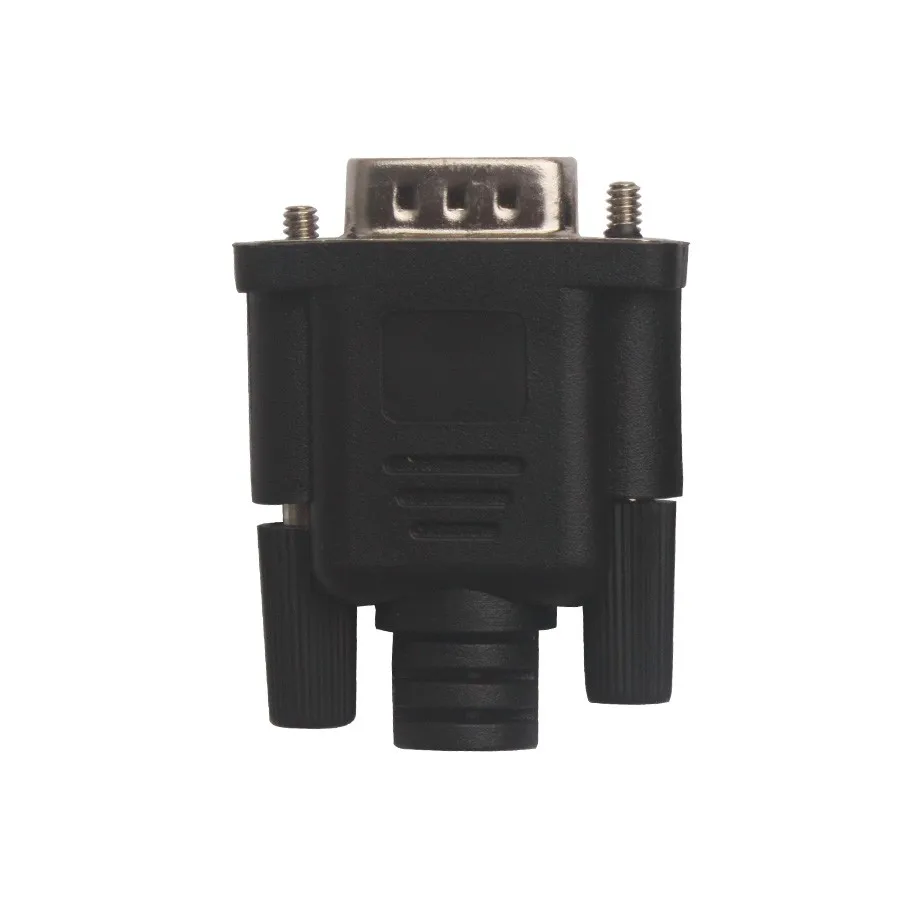

1 x RS232 Cable
1 x USB to RS232 Cable(SO288)

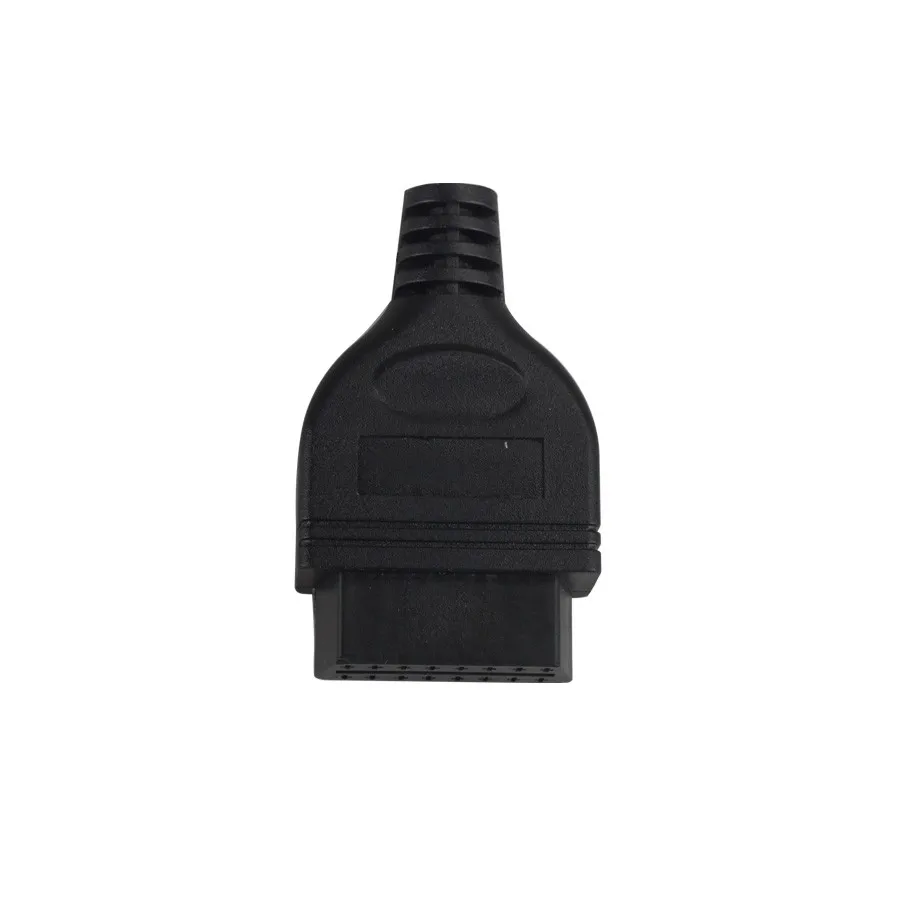

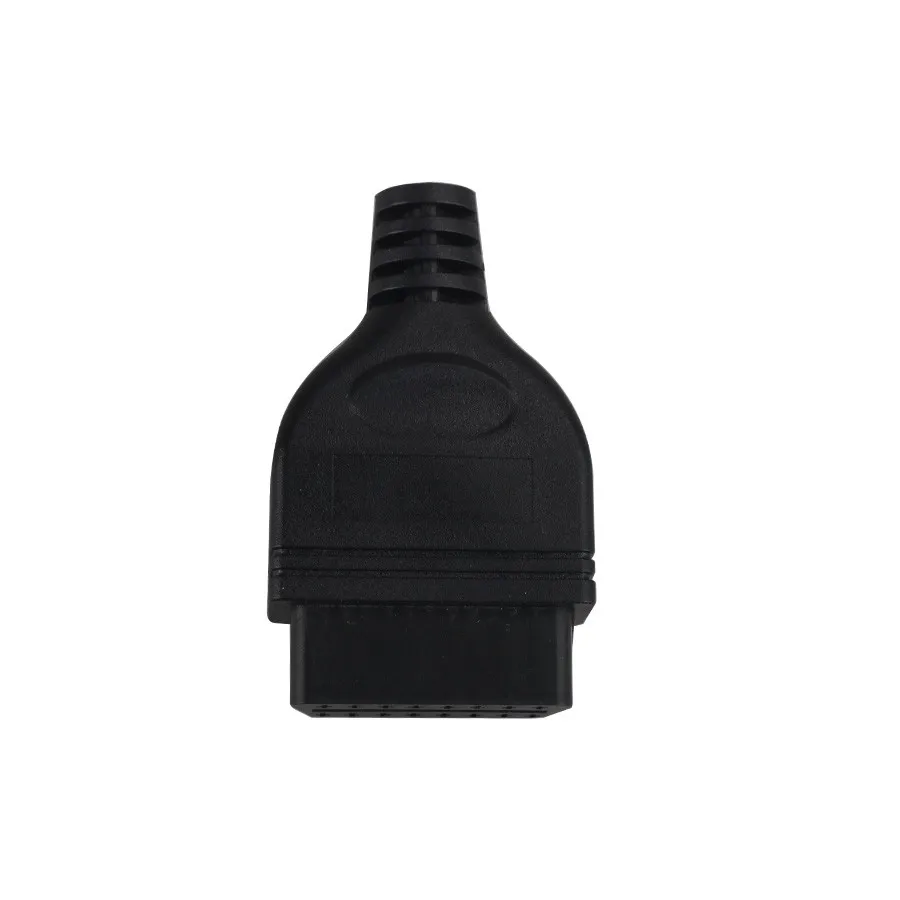

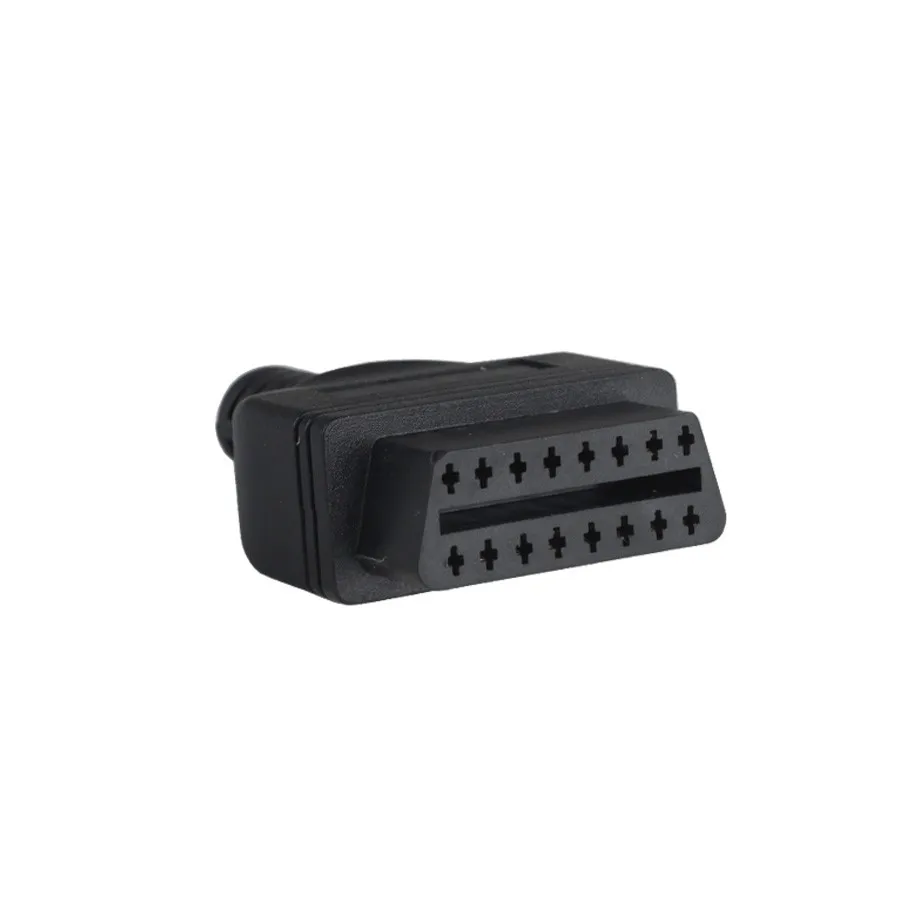

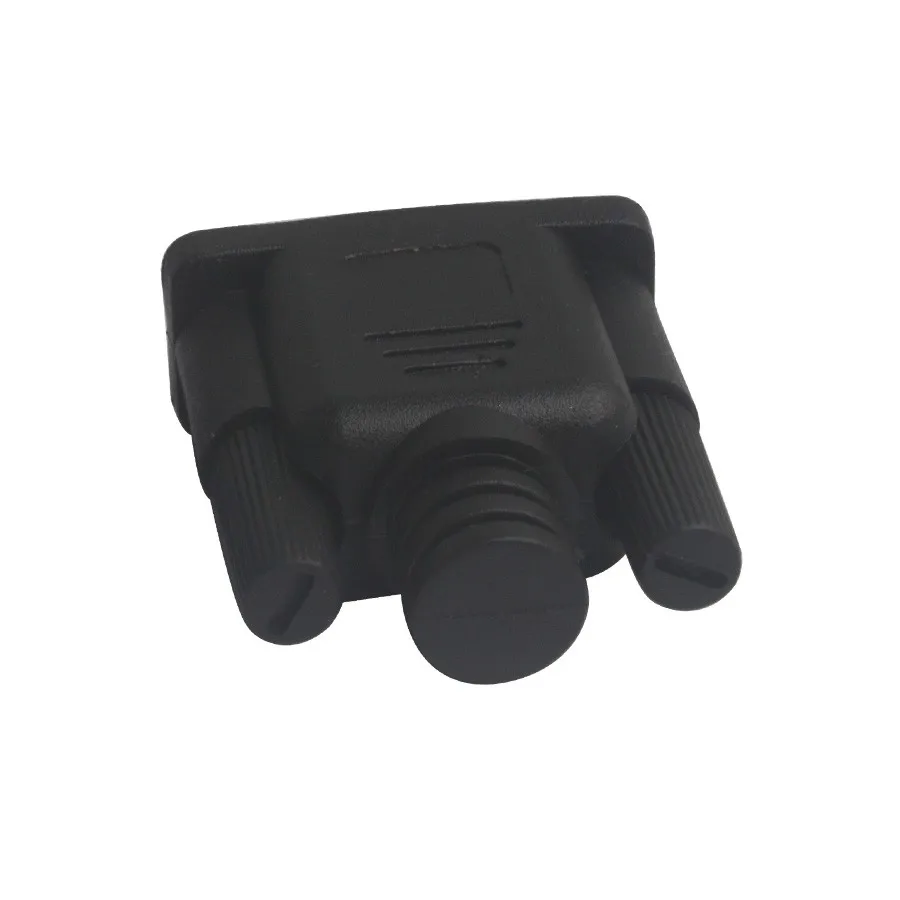

2 x Self test Adapter

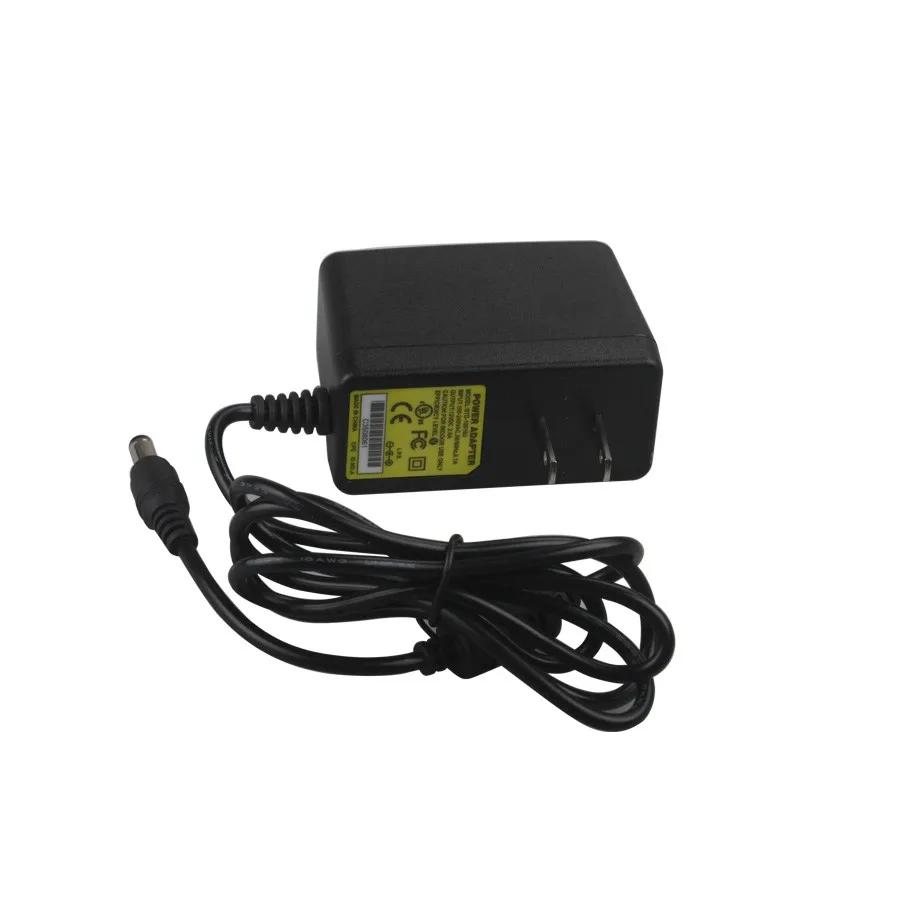

1 x AC Adapter
