J2534 TOOLS
XVCI series SAE J2534 tools are used by the automakers for engineering, manufacturing, end of line testing, cali-bration reflashing, and service tools. In the aftermarket, XVCI tools are used by technicians for diagnostics, data logging, and J2534 re-flashing operations. Aside from J2534, XVCI tools for CAN applications, Heavy Duty Truck and Public Transportation support over J1708, J1939, RP1210a,RP1210b fleet solutions, plus many other standard and customized products.
X-vci For car
MANY TOOLS IN ONE
X-vci box not only support J2534 reprogramming, but it is also the device of OEM scan.J2534 is the har-dware standard for OEM scan.Toyota,Honda, Subaru,Mazda,Ford,,Landrover,Jaguar,GM and more use J2534 standard for scan now.so X-vci can work with many original diagnostic softwares, and same function as the original tools
PROTOCOL SUPPORT
RP1210A, RP1210B, and J2534 API support
Bluetooth vehicle-to-PC wireless connectivity
USB vehicle-to-PC connectivity
Protocol coverage for automotive to heavy duty vehicles:
CAN - J1939/CAN125/CAN250/CAN500/CAN1000
2nd CAN - J1939/CAN125/CAN250/CAN500/CAN1000
Automatic bit rate detection for both CAN channels
J1587/J1708
J1850
ISO 15765 (Diagnostic CAN)
ISO 14230 (KWP2000 over ISO9141)
J2534
Compatible software
Support car and Orignial software, Can Replace Original VCI
|
Car Model |
Software |
Hardware(VCI) |
|
GM/Opel/Saab |
Tech2Win/GDS2 |
Tech2/MDI |
|
Ford/Mazda/LandRover/Jaguar |
IDS |
VCM |
|
Toyota |
Techstream |
TIS3 |
|
Honda |
HDS |
GNA600/HIM |
|
Subura |
SSM-III |
SSM-III |
|
Volvo |
Volvo Vida Dice |
Vida Dice |
Hardware specification:
|
Item |
Instruction |
|
Processor |
32 BIT high speed ARM processor |
|
Flash |
512KB |
|
RAM |
64KB |
|
Diagnostic Socket |

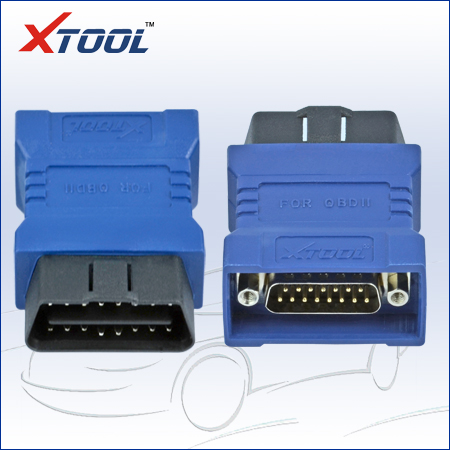

J1962 OBD-II 16 connector |
|
Wired socket |
USB2.0/USB1.1 compatible |
|
Wireless Socket |
Bluetooth2.0 |
|
Light |
2 LED light,indicating work and Bluetooth statuses |
|
Power |
Vehicle power input: DC 9V-36V,or USB DC 5V |
|
Consumption |
Below 1W |
|
Size |
L x W x H=166 x 95 x 33(mm) |
|
Working Temperature |
-20~+70 °C |
|
Storage Temperature |
-40~+85 °C |
