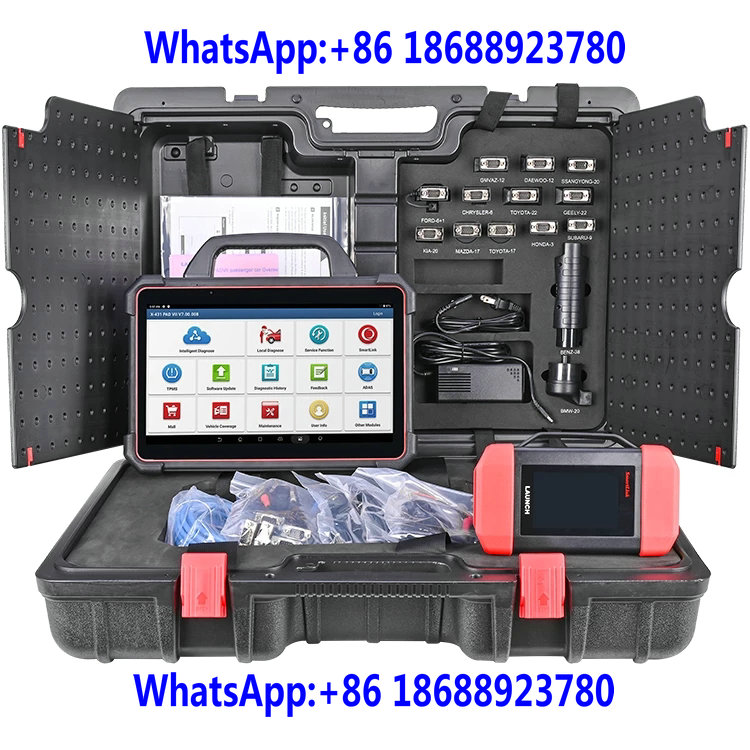

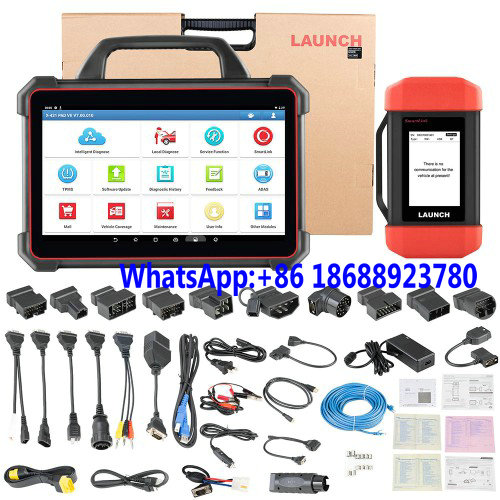

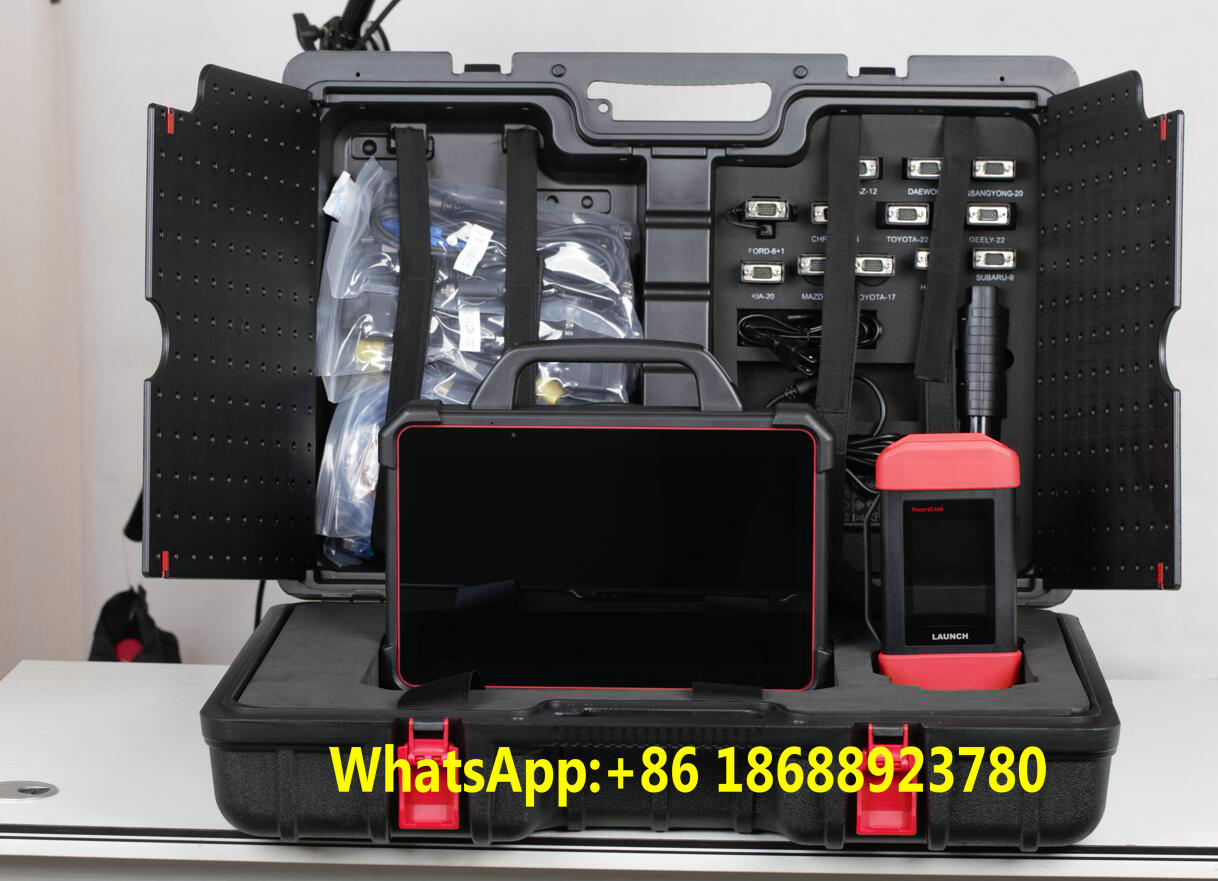

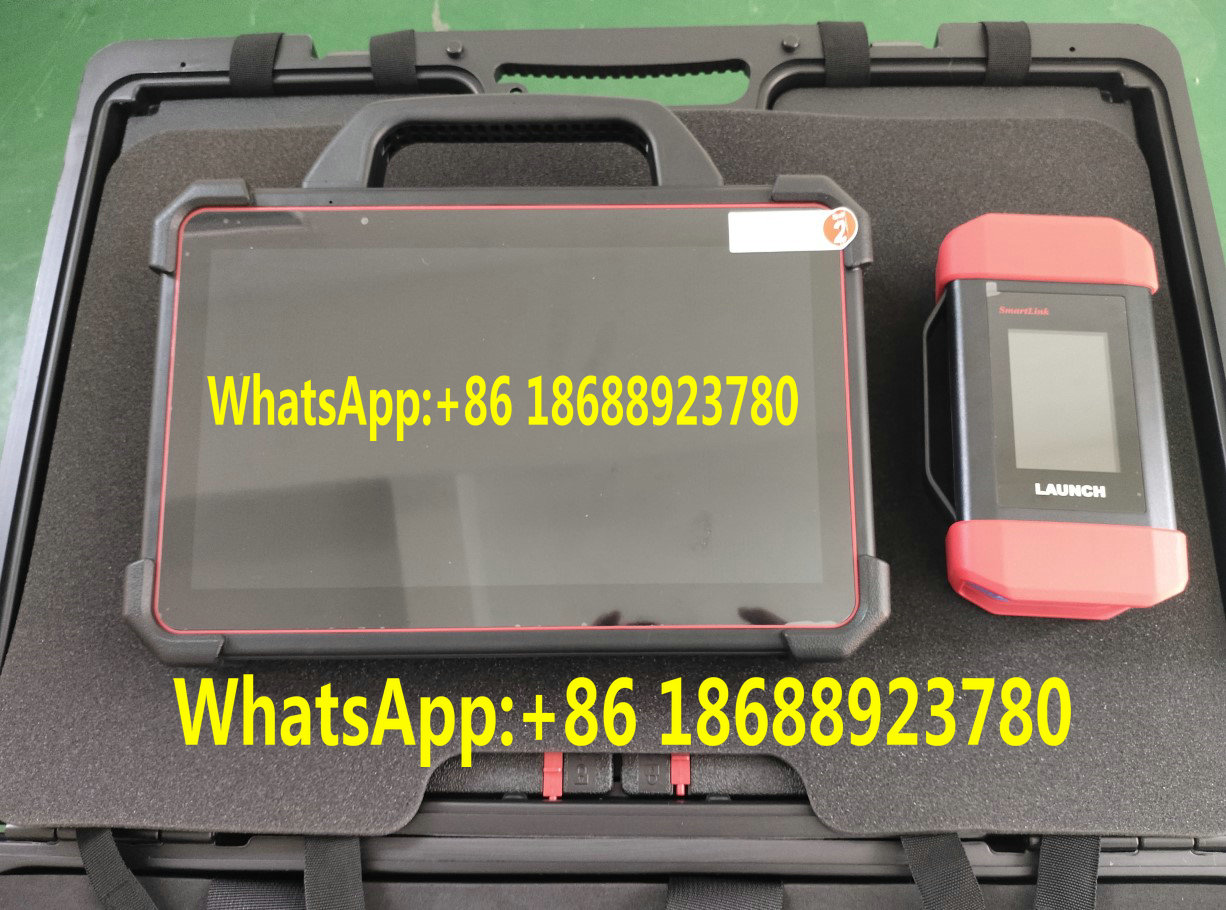

Product Name:LAUNCH X431 PAD VII PAD 7 with ADAS Calibration Automotive Diagnostic Tool Support Online Coding and Programming
Product Type:LAUNCH X431 PAD VII
Product Category:Car Diagnostic Tool
View Count:
Product Description




Products Description
Operation System
Android 9.0
Processor
2.0GHz Octa-core
Memory
8GB RAM & 256 GB On-board Menory

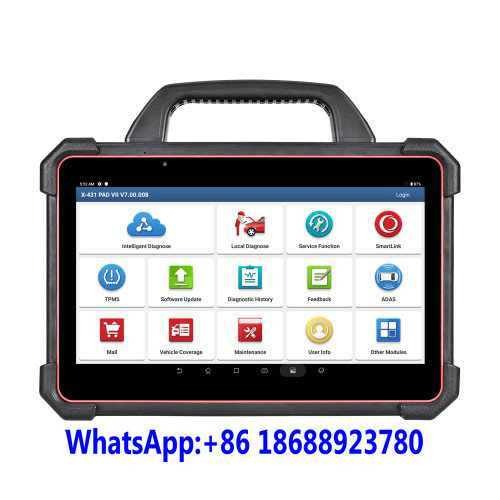

Display
13.3' touch screen 1920*1080
Connectivity
BT v.2.1+EDR,SD Card (Support up to 32GB),HDMI
Camera
Front 8 Megapixel Rear 13 Megapixel
Battery
15000mAh
Free Update
3 Years
Input Voltage
12V (9-24V)
Power Consumption
6.5W

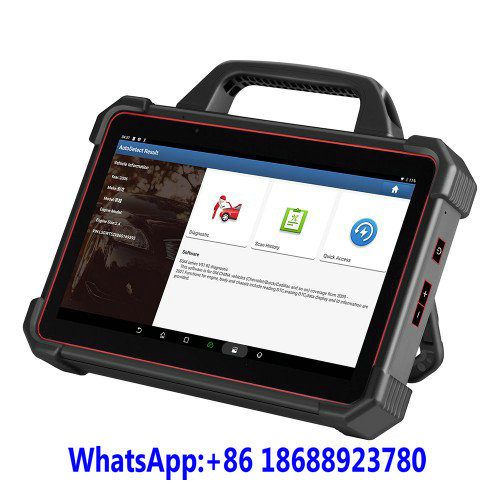

LAUNCH X431 PAD VII

Features
1. Full system vehicle coverage for U.S., Asian and European markets over 110 brands, which is continually updated
2. Upgrade and expand the X-431 PAD VII with more software and service via the new module 'MALL' as demanded
3. Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
4. Topology mapping gives a visual checking on DTCs and all systems communication status
5. Support automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534/D-PDU/RP1210
6. Auto-detects the communications protocol of the vehicle and assist to check automotive OBDII port pin damaged or not
7. Intelligent diagnostic enable identify VIN automatically and access system quickly
8. Guided function for VW and AUDI
9. Optional ADAS calibration function increases more revenue
10. Advanced coding and programming function
11. An extended solutio to support TPMS service
12. 2.4GHz & 5GHz dual band communication ensures quick and stable connection
13. Empower technician to diagnose light, medium & heavy duty vehicles with Smarlink C
14. The basic functions include read & clear DTC, remote diagnosis, Bi-directional control, live data graph, wireless software
update etc.
15. Build-in repair information and training video modules help to track and fix issue fast

【LAUNCH X431 PAD VII support OE-Level Functions】

💥 supports AutoAuth for FCA SGW(for 2017 and later Chrysler,Dodge,Jeep,Alfa Romeo and Fiat).👍VAG Guided Functions(compatible with VW,SKODA,SEAT)👍Online Parameterization👍Modification for BMW 👍Offline Coding👍 Calibration👍Flash Hidden Functions👍Setting & Changeover for Benz ( All the function above is car-specific).you can perform OE-level diagnosis and pr ogramming for more accurate diagnosis and efficient car repair jobs to win more business!

【Bi-diectional Control+ All systems diagnosis+50 reset service】

LAUNCH X431 PAD V scan tool can perform bi-directional control on all systems,like ABS,fuel pumps,windows,doors,etc.and it supports 50+ reset service,like key IMMO,abs bleeding,GEARBOX,Oil Reset,Injector coding, Gear Reset, SAS Reset, TPMS Reset, DPF Reset, BMS Reset, ETS Reset, AFS Reset, EGR Adaptation.

【The most advanced hardware】

LAUNCH X431 PAD V is equipped with 10 inch screen,6GB RAM +64GB ROM(UP TO 128GB), android system tablet,15000mAh battery,8-core processor.equipped with Docking Station, which can be charged at any time.X431 PAD V features Smart box,providing faster dual Wi-Fi vehicle and 5G network communications.

【Wider Coverage & Support D-PDU/J2534/RP1210 Diagnostic Protocols】

LAUNCH X431 PAD V supports API standard Communication Interface,with the VCMI Vehicle Communication Measurement Interface.support D-PDU/J2534/RP1210 Protocols👍LAUNCH X431 PAD V scan tool support PEV ( pure electric vehicle ).👍Heavy Duty Software will be optioned in 2021.6(buy it in the mall).diagnose gasoline vehicles & 24V Diesel Trucks/buses/trailers/excavators/construction machinery/pick-up/etc.

【AUTO VIN Scan + Topology Mapping + Health report】

LAUNCH x431 pad v auto scan your vehicle's vin and can show all the vehicle modules with a colour coded topology structure communication network.all the faults of each module and relationship between different modules can be viewed from it at a glance. Smarter & faster! Save your time!

LAUNCH X431 PAD VII scan tool support PEV ( pure electric vehicle )

other launch x431 device supports Hybrid cars , but do not support PEV. Heavy Duty Software will be optioned in 2021.6(buy it in the mall).diagnose gasoline vehicles & 24V Diesel Trucks/buses/trailers/excavators/diesel engine/construction machinery/pick-up/etc.

Advance OE-level function

√ Guided Functions: Compatible with Volkswagen / Audi / Skoda / Seat etc.

√ Component Matching: Compatible with Volkswagen / Skoda / Seat / BMW / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.

√Online Coding: Compatible with Volkswagen / Audi / Benz / BMW / Seat / Porsche etc.

√Online Account Login Service: Compatible with Volkswagen / Audi / Skoda / Seat etc.

√Online Calibration: Compatible with Volkswagen / Audi / Skoda / Seat etc.

√Online Parameterization: Compatible with Volkswagen / Audi / Skoda / Seat etc.

√Anti-theft IMMO Serivce: Compatible with Volkswagen / Audi / Skoda / Seat etc.

√Power Balance: Compatible with Chrysler / GM / Ford etc.

√Programmable Module Installation: Compatible with Ford / Mazda etc.

Online Programing of Launch X431 PAD VII

X431 PAD VII supports programming and coding, which is to write the relevant control information of the software into the automotive computer's programmable EPROM or FLASH by making use of the electronic communication transmission technology.

X431 PAD VII Support intelligent recognition of programming files, convenient and quick operation.Support for Mercedes-Benz, for Benz New Energy, for BMW, for BMW New Energy, for GM, General New Energy, for Ford,Ford New Energy, for Volkswagen, for Volkswagen New Energy, for Audi, for Audi New Energy, for Land Rover, for Nissan,Skoda, for Seat, for Mazda and other models Programming function.

ECU CODING

ECU Coding function is used to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements, providing ways for the issues of Drivability, Fuel Efficiency, Power Loss, Fault Codes, Durability of Mechanical Parts. this functions works for 98% car models(including BMW, Volkswagen, Porsche, etc.)

The Bi-Directional Control (Active Test)

enables you to transmit control commands to operate the vehicle systems, without using the vehicle's controls, to verify system input and output such as:

Turn on the radiator fan / Turn on interior & exterior lights / Turn on sound horn / Modulate the throttle / Open & close windows / Operate mirrors / Test door lock actuators/ Injector Test ;Turn Off ACC Lane Keeping Assist System (LKAS) ;Turn ON/OFF Front and Rear side ACM Solenoid , turning the fuel pump on and off, cycling the a/c ,clutch on and off, Left clutch electromagnetic coil test,Acceleration Device Test,Oil Pressure Control Test,DYNAMIC camera aiming,Vehicle level position calibration, Brake Vacuum Pump, Inlet and Outlet Valve tests, Open Brakes tests, Parking Brake Botors, Wheel Speed Sensor Supply, PARKING BRAKE tests (Vary by car, Hundreds of actuation test functions …

Full Systems Diagnoses In All Vehicle Systems on the ECUs

Engines/ Auto Transmission/ Airbags/ Immobilizer/ Key Coding/ ABS/Cruise Control/ Instruments/ Self Leveling Suspension systems /Seats/ Doors/ Gateway/ Steering Angle/ Air Suspension/ Body Systems/ Electronic Power Steering & Motor Assisted/ Power Steering/ Tyre Pressure/ Rain Sensors/ 4WD System Stabilizer/Intelligent Parking Assist/ Door Motors/Audio Systems/Air Conditioning/ Anti Theft/ Soft Top/ Headlamp Leveling/Electric Windows/ Plip Programming/ Heated Rear Window/ Xenon Headlights/ Wash Wipe/ Fuel Burning Heater/ Transfer Box/ Seat Memory/ Oil Life Service Reset/ Sliding Doors/ Electronic Throttle / Navigation System/ Rollover Sensor/ Cruise Control/ Multi Function Steering Wheel/ Aux Heating/ Electron...tc /Seats/ Doors/ Gateway/ Steering Angle/ Air Suspension/ Body Systems/ Electronic Power Steering & Motor Assisted/ Power Steering/ Tyre Pressure/ Rain Sensors/Air Conditioning/ Tiptronic/ Anti Theft/ Soft Top/ Headlamp Leveling/ Central Locking/ Automatic Clutch/ DPF Reset / Electric Windows/ Plip Programming/Seat Memory/ Oil Life Service Reset/ Sliding Doors/ Electronic Throttle / Navigation System/ Rollover Sensor/ Cruise Control/ Multi Function Steering Wheel/ Aux Heating/ Electron..etc

Accurate ADAS Calibration functions

Advanced Driver Assistance System (ADAS) is an electronic component in a vehicle, including various safety functions of the vehicle, such as automatic emergency braking (AEB), lane departure warning (LDW),lane keeping assist, blind spot elimination, night vision camera and Adaptive lighting.this aytomotive scanner can read the fault codes on ADAS system,but if want to do the ADAS calibrate function,you need to extra buy the ADAS rack.

TPMS Diagnostic Function:

LAUNCH X431 PAD V can work with wireless tire pressure diagnostic too to achieve the features of TPMS activation, programming and learning.((NOTE: Need to be purchased separately)) a)Activation:to activate the sensor's lD, wheel pressure, sensor frequency, tire temperature and battery status. b)Programming:to program sensor data to a blank sensor, so as to replace a sensor that is in low battery and does not function properly. There are three sensor programming methods available:automatic, manual, and via activation replication. c) Learning:to write the sensor ID into the vehicle ECU for sensor identification

Key IMMO / Key Fob Programming

Key Fob Programming/IMMO is mainly used to disable the lost vehicle keys and program a new replacement key fob for special vehicles.

Note:the key programming function is NOT universally compatible .please check compatibility with us if necessary. LAUNCH X431 PAD V supports PINCode reading for most cars before 2008 ,for vehicles after 2008,you need to have PINCode to do key programming

√ Add A Key: Add On An Extra Key To The Vehicle
√ Reset Key: Relearn The Key
√ All Keys Lost: Both Key Missing,Create New Key To the Vehicle

SUPPORT EXTENSION MODULES

1. Videoscope (Mainly applied to check unseen parts of engine, fuel tank, braking system, etc.)

2. TSGUN (activate all sensors, tpms relearn, program only Launch Sensors)

3. X431 PRO G(IMMO For VAG Group Above 3.5)

4. X431 Heavy Duty Module (diagnose gasoline vehicles & 24V Diesel Trucks)

5. X431 ADAS Moblie/ADAS PRO (calibrate a wide range of camera-based & radar-based driver assistance systems)

6. X431 Printer (Print out diagnostic data/ reports.)

50+ Special functions

1. Oil Reset Service

This function allows you to perform reset for the engine oil life system, which
calculates an optimal oil life change interval depending on the vehicle driving
conditions and climate.
This function can be performed in the following cases:
1. If the service lamp is on, you must provide service for the car. After service,
you need to reset the driving mileage or driving time so that the service lamp
turns off and the system enables the new service cycle.
2. After changing engine oil or electric appliances that monitor oil life, you need
to reset the service lamp.

2. Electronic Parking Brake Reset

If the brake pad wears the brake pad sense line, the brake pad sense line
sends a signal sense line to the on-board computer to replace the brake pad.
After replacing the brake pad, you must reset the brake pad. Otherwise, the
car alarms.

3. Steering Angle Calibration

To reset the steering angle, first find the relative zero point position for the car to
drive in straight line. Taking this position as reference, the ECU can calculate the
accurate angle for left and right steering.
After replacing the steering angle position sensor, replacing steering mechanical
parts (such as steering gearbox, steering column, end tie rod, steering knuckle),
performing four-wheel alignment, or recovering car body, you must reset the
steering angle.

4. ABS Bleeding

This function allows you to perform various bi-directional tests to check the
operating conditions of Anti-lock Braking System (ABS).

5. Tire Pressure Monitor System Reset

This function allows you to quickly look up the tire sensor IDs from the vehicle’s
ECU, as well as to perform TPMS replacement and sensor test.

6.Gear Learning

The crankshaft position sensor learns crankshaft tooth machining tolerance and
saves to the computer to more accurately diagnose engine misfires. If tooth learning is not performed for a car equipped with Delphi engine, the MIL turns on
after the engine is started. The diagnostic device detects the DTC P1336 'tooth
not learned'. In this case, you must use the diagnostic device to perform tooth
learning for the car. After tooth learning is successful, the MIL turns off.

7. IMMO Service

8. Injector Coding

9.Battery Maintenance System Reset

This function enables you to perform a resetting operation on the monitoring unit
of vehicle battery, in which the original low battery fault information will be
cleared and battery matching will be done.

10.DPF Regeneration

DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter
through continuous combustion oxidation mode (such as high temperature
heating combustion, fuel additive or catalyst reduce PM ignition combustion) to
stabilize the filter performance.

11. Electronic Throttle Position Reset

This function enables you to make initial settings to throttle actuators and returns
the “learned” values stored on ECU to the default state. Doing so can accurately
control the actions of regulating throttle (or idle engine) to adjust the amount of
air intake.

12. Gearbox Matching

if vehicle won’t start or “Check Engine” light is illuminated. Check car’s fuel system regularly ensures the best performance of your car with the lowest emissions.

13. AFS Reset

14.Sunroof Initialization

15 Suspension Calibration

16.EGR Adaption

17.Seats Calibration

18. Tyre Reset

This function is used to set the size parameters of the modified or replaced tire.

19.Coolant Bleed

Use this function to activate the electronic water pump before venting the cooling
system.

20.AdBlue Reset

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea
reset operation is required.

21.NOx Sensor Reset

NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in
engine exhaust. If the NOx fault is re-initialized and the NOx catalytic converter
is replaced, it is necessary to reset the catalytic converter learned value stored
in the engine ECU.

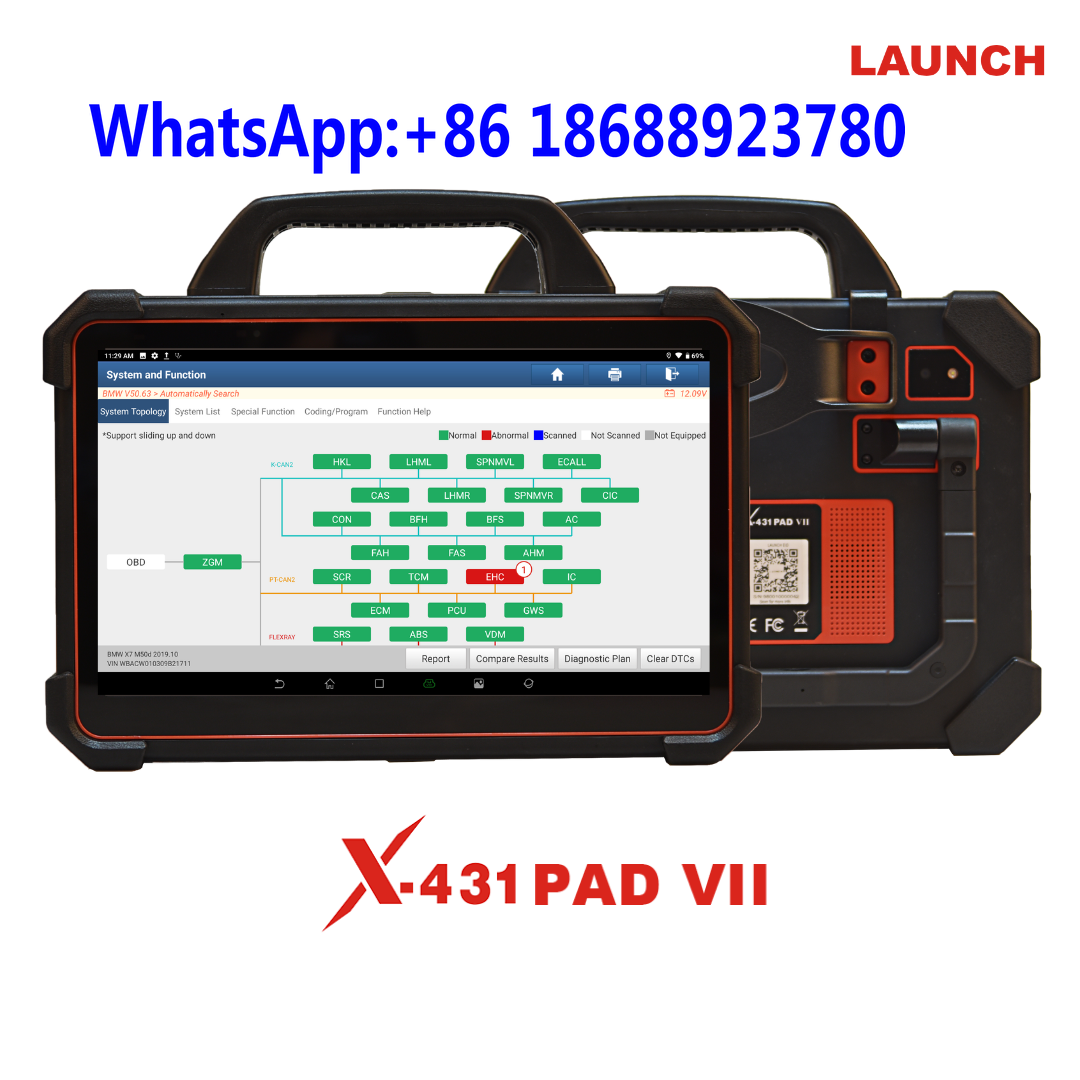

Provides Module Network Structure Topology,Better to let you know the car clearly and simple !

Color-coded topology displays all system status in one page!!!View structure of communication between modules
With topological diagram Function,it can displays the entire system through the Topology Map to glance all the modules with faults, which is easy to locate faults and causes.

Up to 5 ways of DTC display: Topology, list, separately click into the control unit, Intelligent Diagnostics details, vehicle diagnosis report, among which Topology is the newest and innovative configuration.

Display the entire system through the Topology Map to glance all the modules with faults, which is easy to locate faults and causes. Color-coded topology displays all system status in one page and structure of communication between modules. Communication between modules and status can be spotted in a glance and you can locate faults more intuitively to solve problems quickly!

NOTE: Topology is not universal to all the vehicles, please check VIN for compatibility before you place order!

PIN Detection Function

Pin detection can be used to detect the voltage of the vehicle OBD-II diagnostic socket pins and the supported protocol types to help technicians judge the OBD-II diagnostic interface.if the detection result does't match the actual vehicle configuration,the corresponding pin may be faulty.

Remote Diagnose

help repair shops or technicians launch instant messaging and remote diagnosis, making the repair job getting fixed faster.could access remotely and quickly via mobile phone, tablet and computer, with low bandwidth and system resource occupancy.

It also can "Add friend " , can add the one who also use launch product , then you can comunicate with them in X431 Pro3s , if you have problem to car repair , you can talk with them online , they can help you !!!

Online Database

is fully filled with abundant repair cases and automotive technology handbook for your easier retrieval and reference.



SUITABLE FOR THE FOLLOWING:

Passenger vehicles:

1. Australian: AUST Holden, AUST Ford

2. Asian: Toyota/Lexus, Honda/Acura, Mazda, Subaru, Nissan/Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti

3. European: Audi, Mercedes/Maybach, BMW/MINI/Rolls Royce, VW/Bentley/Bugatti, Opel/Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/Dacia, Fiat/Romeo/Abarth/Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar

4. USA: USA Ford/Lincoln, GM/Buick/Cadillac/Chevrolet, Chrysler/Dodge/Jeep

5. Chinese: Changcheng(Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.

6. Special: Immobilizer/Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS

7. Others: EOBD, Demo

* Standard 3-year free update.



Heavy Duty Vehicles :

Software Coverage:
Nissan (Diesel)
Mitsubishi (Diesel)
USA Ford Diesel, Kenworth
Astra, Benz Heavy Duty, Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine
Powerful special functions:
Component Replacement, Cylinder Compression Test, Injector Cut Out Test, DPF Regeneration
Communicates with ABS & Transmissions from Bendix, Wabco and Allison
Tech to Tech remote communication function
