Product Name:autocom CDP+ OBD2 Diagnostic Tool for Car and Truck
Product Type:autocom CDP+
Product Category:Car Diagnostic Tool
View Count:
Product Description

Product Description


New cdp+ With CARS, you are able to perform brand specific diagnostics for cars and light vans from 1988 onwards. A total of 47 different brands. With TRUCKS software package, you are able to perform brand specific diagnostics for light and heavy commercial vehicles, buses and trailers from 1995 onwards.
A total of 37 different brands. The diagnostic program GENERIC is designed for the legislation based diagnostics, specially targeted for emission related fault codes. GENERIC is included in CARS and TRUCKS packages.
Multiplexer function, 2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K/L (ISO 9141-2), VPW (J1850), PWM (J1850), RS485 (J1708), TTL and (SPI, analog in, 5volt out).

20190322_170737_00020190322_170737_00120190322_170737_00220190322_170737_00320190322_170737_00420190322_170737_00520190322_170737_006

FEATURES & BENEFITS

Gray interface (new cdp+ quality A)
LED ON OBDII
USB cable DVD


FLIGHT RECORDER
With the flight recorder function, you can record parameters in real time while you are driving a vehicle. During recording, you can, with a press of a button, highlight the specific error so that you can investigate the detected error at a later time. CDP+ is equipped with built-in memory thus removing the need to bring a computer. Memory cart not include in package .


MULTI COLOUR INDICATOR
With the multi colour indicator on CDP+, you have full control of the diagnostic process. Different colors and sound communicates the status and the placement of the indicator allows you to see it from a far. For example, if the indicator alternates between blue and green the CDP+ is in communication with the vehicle control unit.


VOLTAGE CHECK
When CDP+ is connected to the vehicle, the unit will check the battery voltage of the vehicle and automatically adjusts itself to the vehicle’s voltage level of 12 or 24 volts. If the voltage gets too high or too low, CDP+ will warn you with both sound and light and you will also be alerted through the battery icon in our diagnostic software.


CHASSIS NUMBER VIN
In our CARS software, we have a smart function that allows you to read out the chassis number from the vehicle that you would like to diagnose. This ensures that the right model and year is selected automatically. In addition, engine code for vehicles, which are commonly available on the markets, is also selected automatically.


ISS
Intelligent System Scan (ISS) scans through all the systems in the vehicle and displays the fault codes that are stored in each system. This saves time and you get a quick overview of the actual status of the entire vehicle. When the ISS is complete, you can then select a specific control system to analyse the results further on.


ISI
Intelligent System Identification (ISI) identifies and selects automatically the type of controller that is mounted in the vehicle. This ensures that the diagnostic session is performed correctly with the correct parameters as required.


REPORT FUNCTION
Under this function tab, you will be able to see the adaptations and adjustments that are possible for a specific vehicle without having the vehicle near you. Together with the help texts as a guide, you can plan and be effective in your work; even under complex situations.



OBD-FUNCTIONS
CDP+ is equipped with an unique multiplexer technology, which allows it to be used on all types of vehicles, regardless of voltage levels and communication standards. For those vehicles that do not use the standard 16-pin connector, we offer a complete set of certified and customized adapter cables and kits.


UNIVERSAL
For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis work. You will find step by step information about prerequisites, preparation and implementation of various functions; making even the most complex function simple to perform



HELP FUNCTION
For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis work. You will find step by step information about prerequisites, preparation and implementation of various functions; making even the most complex function simple to perform.


Packing Including:
Hardware
LED ON OBDII
Software DVD
USB cable
User manual book

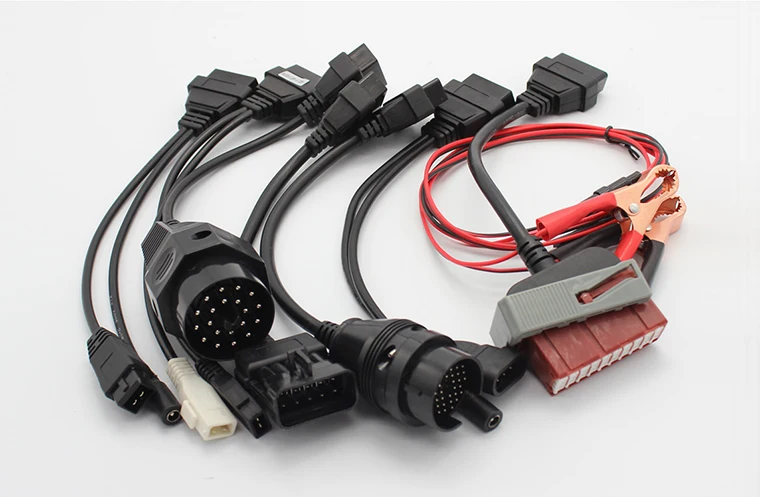

8 cables for cars(full set car cables) as follows:
PSA 30P Cable
PSA-2P Cable
Audi 2P+2P Cable
BENZ-38P Cable
BMW-20P Cable
OPEL-10P Cable
FIAT-3P Cable
Power Cable
HTB1aO7EQFXXXXbIXFXXq6xXFXXXM

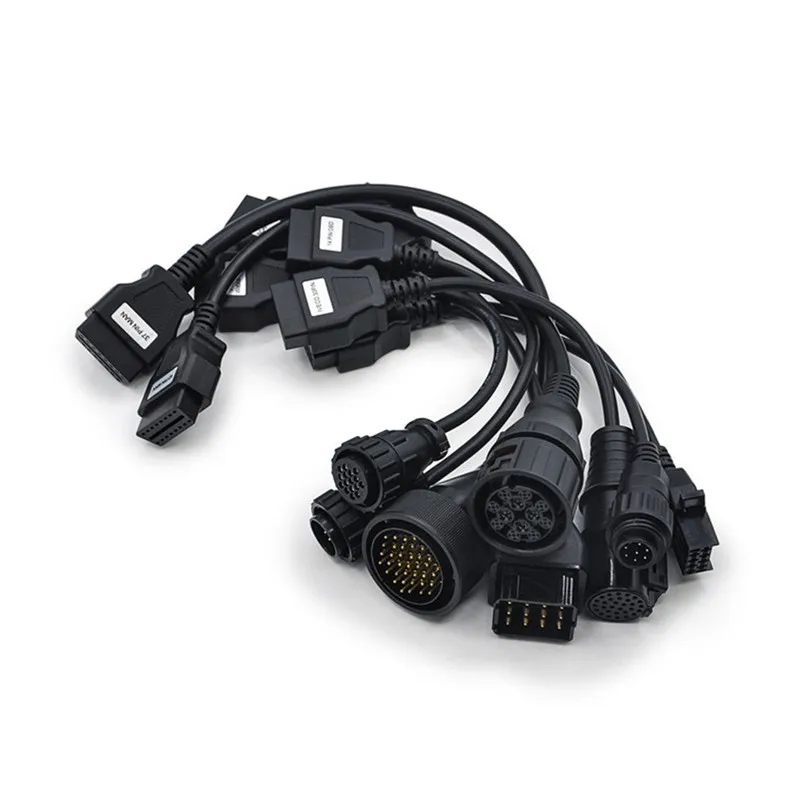

8 cables for truck (full set truck cables) as follows:
7 pin Knorr,Wabco Trailer Cable

12 pin MAN  Cable
37 pin MAN Cable
IVECO-30P Cable
SCANIA -16P Cable
BENZ-14P Cable
Renault-12P Cable
VOLVO-8P Cable

20tcs-truck-cables-FOR-TCS-CDP-PRO-SCANNER
