Product Name:Autel MaxiSys Elite Universal Auto Scanner Diagnostic J2534 ECU Programming
Product Type:Autel MaxiSys Elite
Product Category:Car Diagnostic Tool
View Count:
Product Description

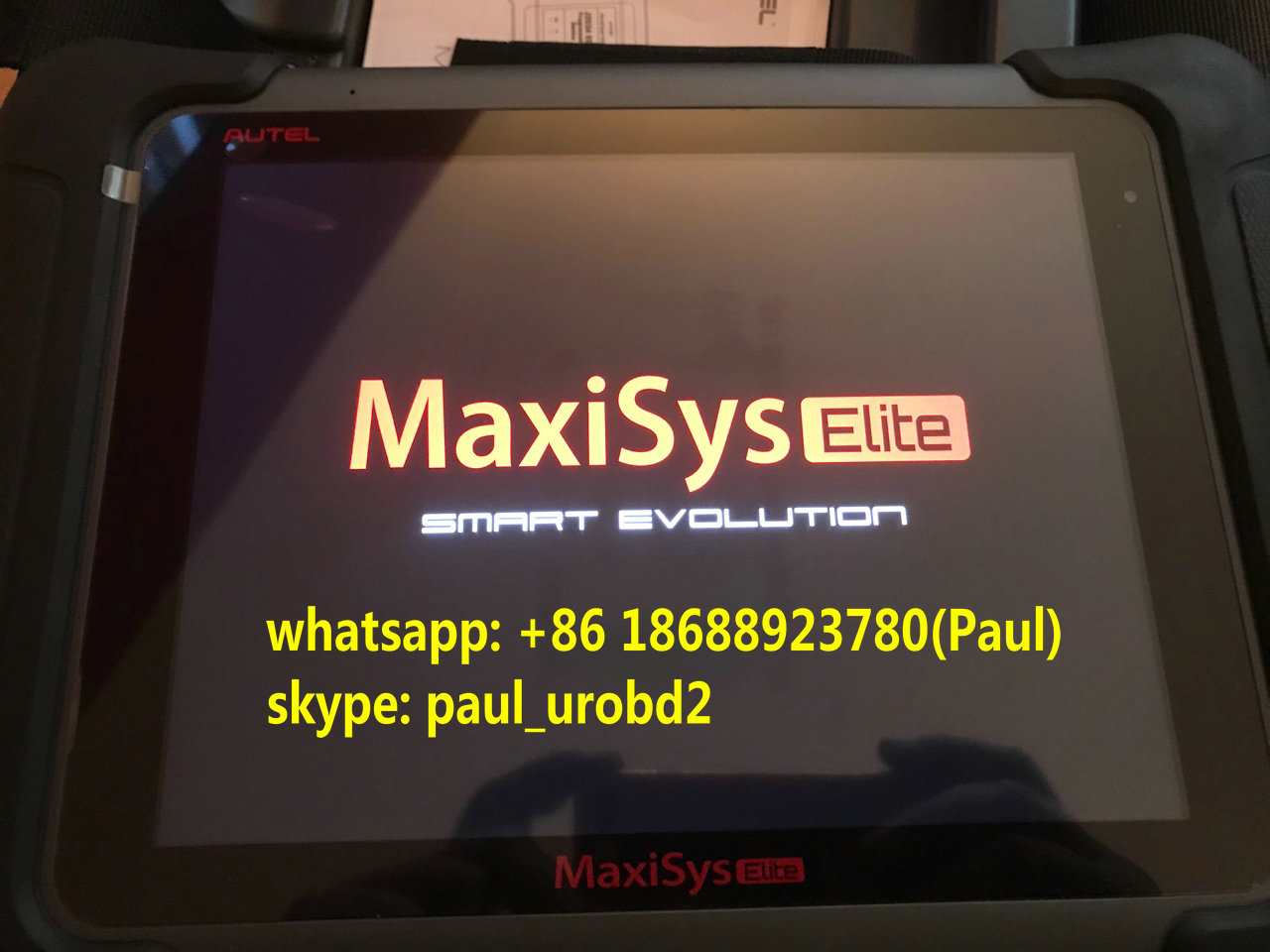

AUTEL MaxiSys Elite Automotive Diagnostic & ECU Programming System
The MaxiSys Elite rapidly performs every job from comprehensive vehicle diagnostics & analysis to advanced ECU programming. 2x faster than any comparable device, the MaxiSys Elite provides extended battery life and intelligent power saving. The MaxiSys Elite offers a super-sensitive capacitive screen able to respond to gloved, moistened, and even greasy fingers! The ergonomically angled docking station provides optimum visibility and convenient charging that eliminates power concerns.
MaxiSYS Elite



6

elite3elite4elite5


4

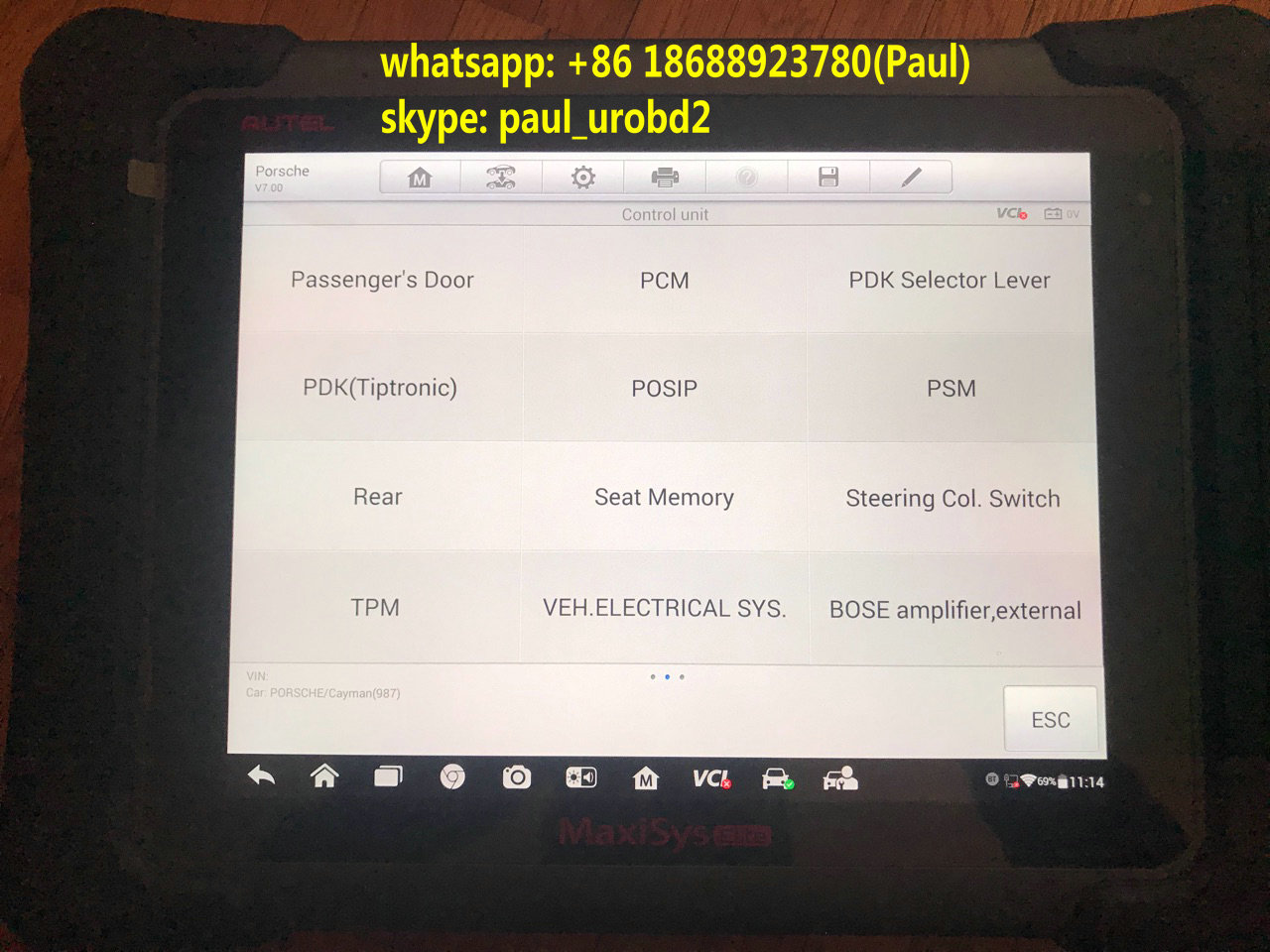

Autel MaxiSys Elite can diagnose the more than 80 US, Asian and European vehicle coverage for codes, live data, actuation tests, adaptations, coding and ECU programming Displays live data in text.
Latest AUTEL MaxiSys Elite with J2534 ECU Preprogramming Box

The MaxiSys Elite rapidly performs every job from comprehensive vehicle diagnostics & analysis to advanced ECU programming. 2x faster than any comparable device, the MaxiSys Elite provides extended battery life and intelligent power saving. The MaxiSys Elite offers a super-sensitive capacitive screen able to respond to gloved, moistened, and even greasy fingers! The ergonomically angled docking station provides optimum visibility and convenient charging that eliminates power concerns.

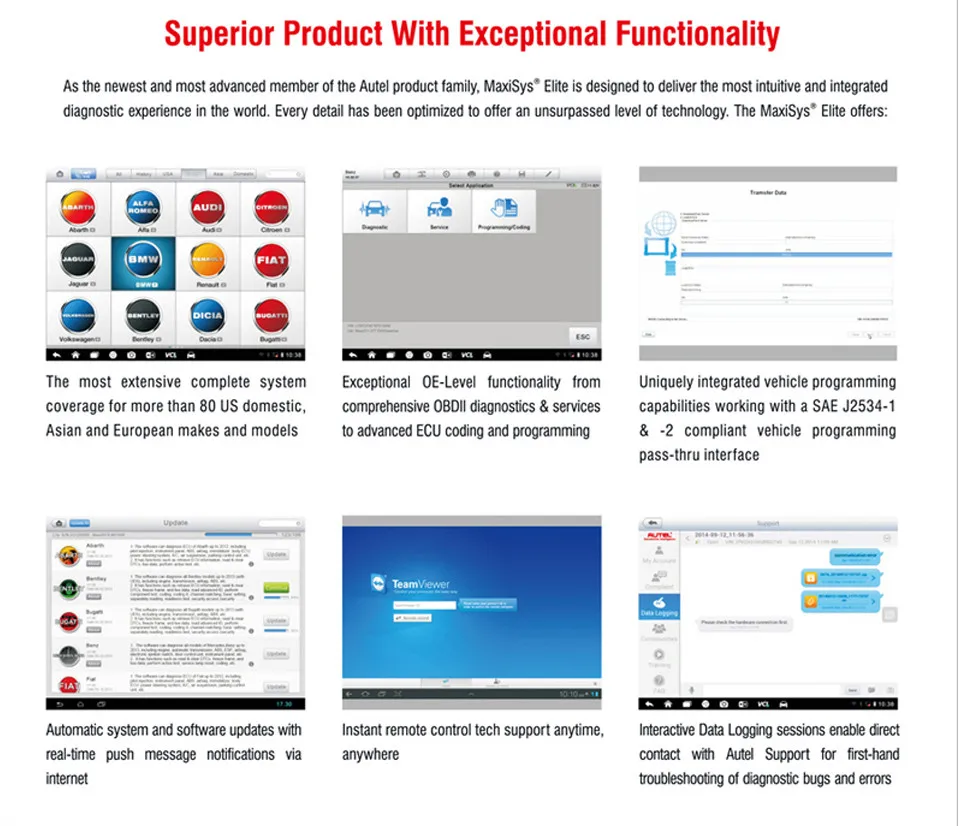

      MaxiSys Elite Features:

1. The most extensive complete system coverage for more than 80 US domestic, Asian and European makes and models
2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming

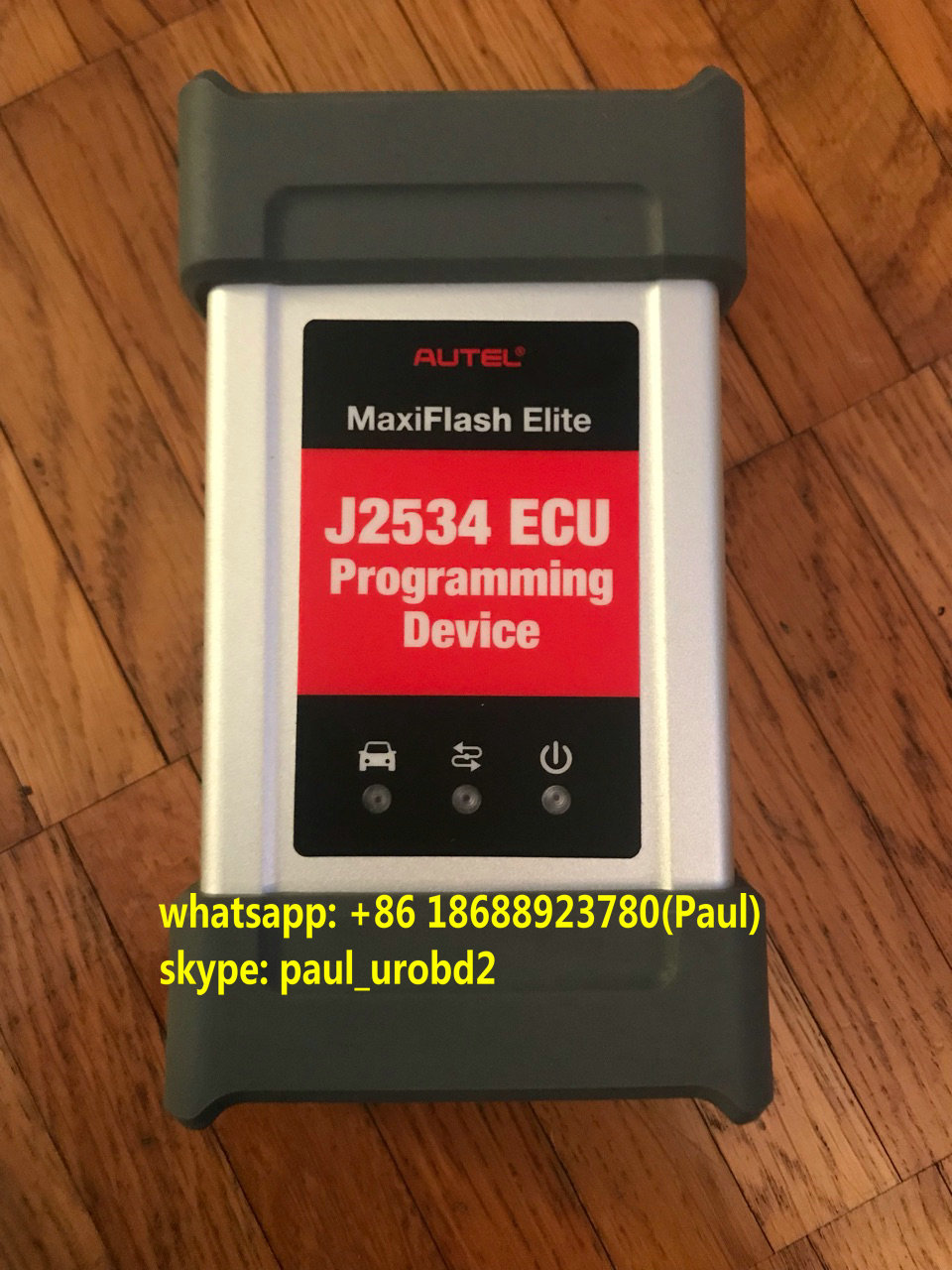

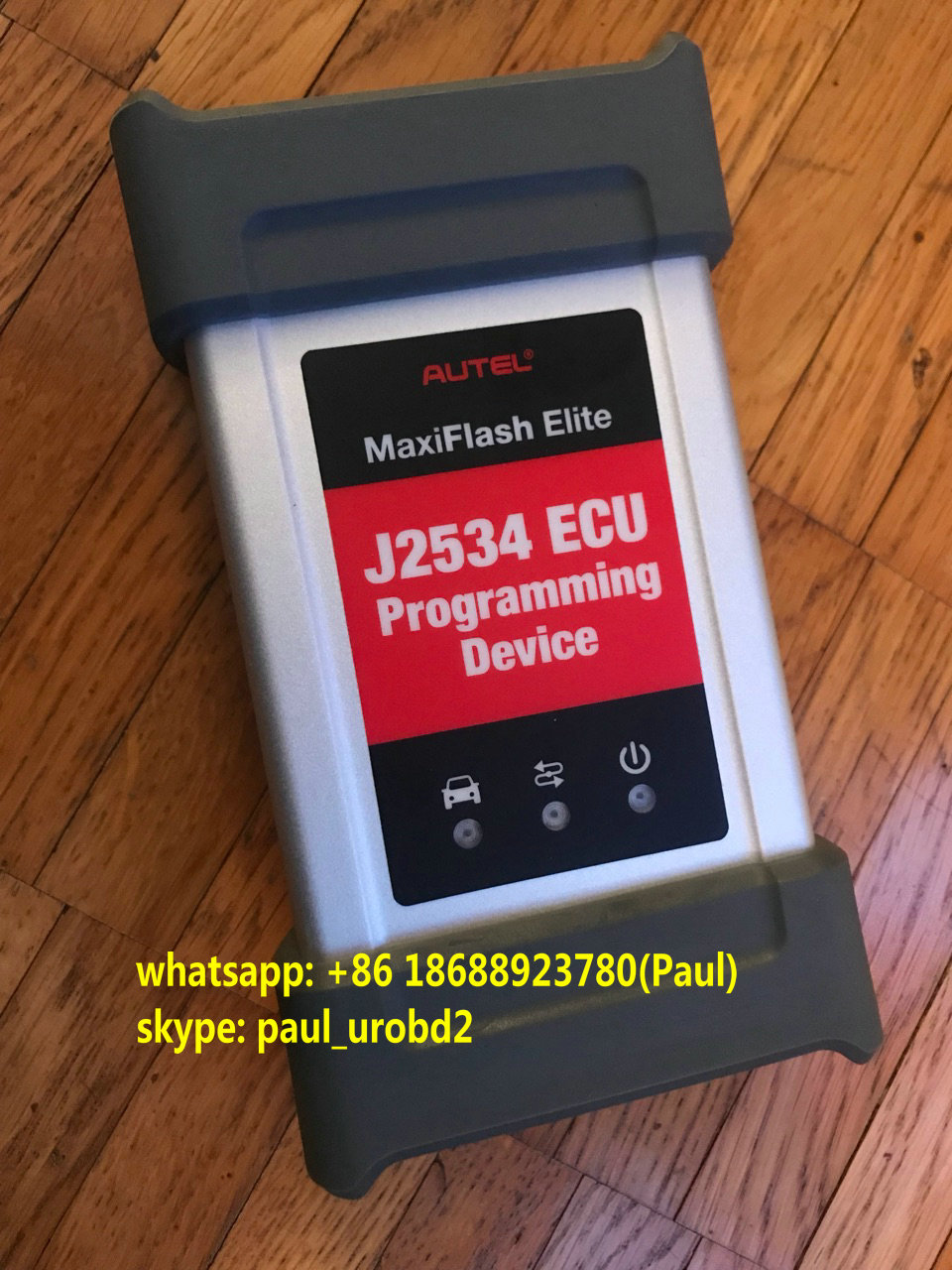

3. Uniquely integrated vehicle programming capabilities working with a SAE J2534-1 & -2 compliant vehicle programming pass-thru interface

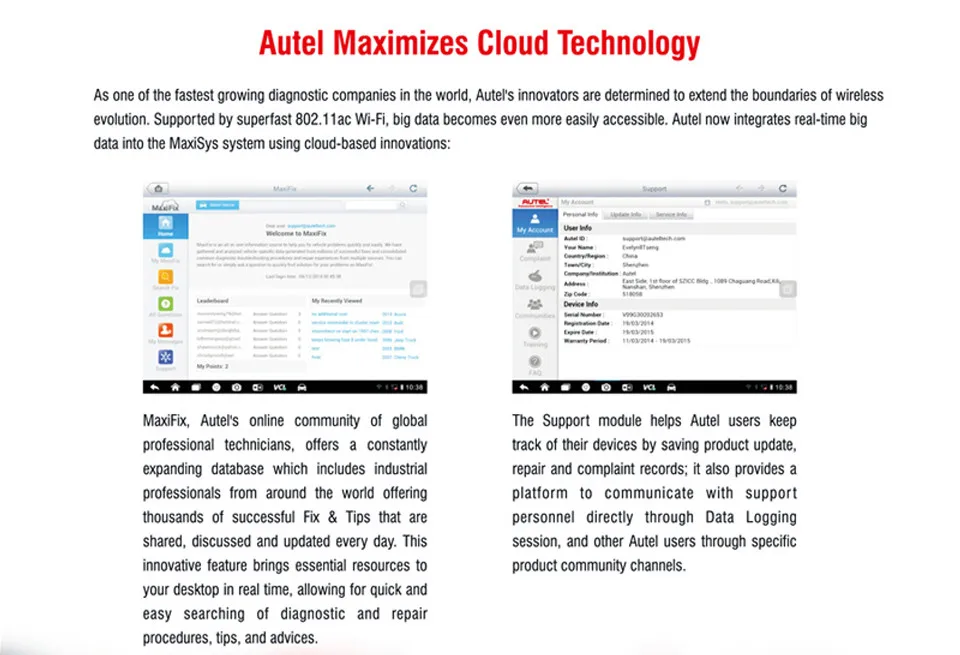

4. Automatic system and software updates with real-time push message notifications via internet
5. Instant remote control tech support anytime, anywhere
6. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
7. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
8. Unique ergonomic design with rubberized outer protection and a rugged internal housing
9. Hardware running speed is twice than Maxysys MS908P.

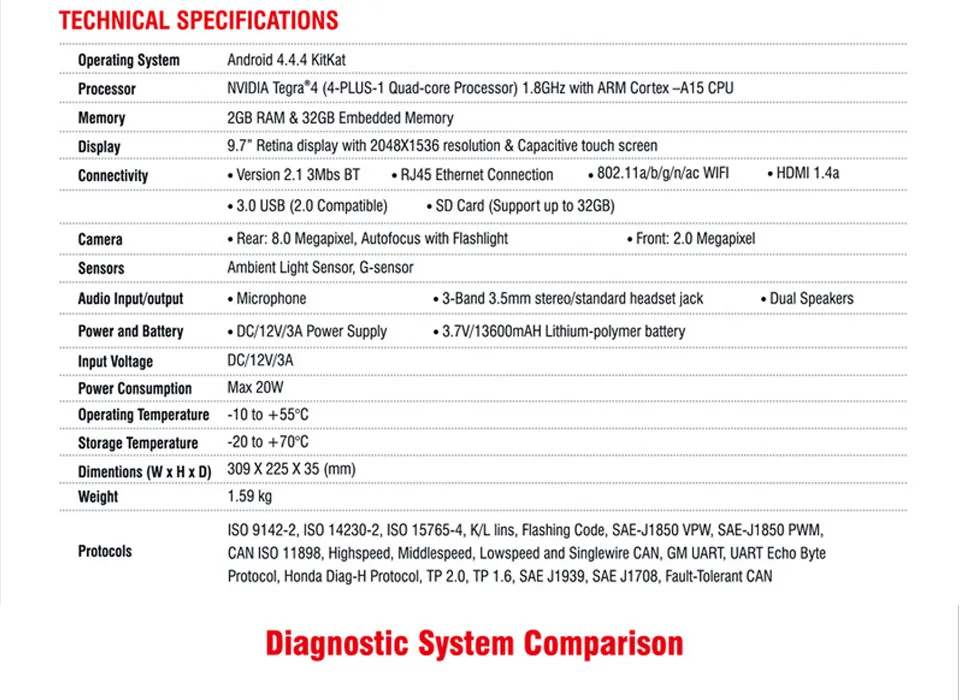

    MaxiSys Elite Specifications:

Operating System   Android 4.4.4 KitKat
Processor   NVIDIA Tegra® 4 (4-PLUS-1 Quad-core Processor) 1.8GHz with ARM Cortex – A15 CPU
Memory   2GB RAM & 32GB Embedded Memory
Display   9.7” Retina display with 2048X1536 resolution & Capacitive touch screen
Connectivity   802.11a/b/g/n/ac WIFI
Version 2.1 3Mbs Bluetooth
RJ45 Ethernet Connection
3.0 USB (2.0 Compatible)
HDMI 1.4a
SD Card (Support up to 32GB)
Camera   Rear: 8.0 Megapixel, Autofocus with Flashlight
Front: 2.0 Megapixel
Sensors   Ambient Light Sensor, G-sensor
Audio Input/Output   Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jack
Power and Battery   3.7V/13600mAH Lithium-polymer battery
DC/12V/3A Power Supply
Input Voltage   DC/12V/3A
Power Consumption   Max 20W
Operating Temperature   -10 to +55°C
Storage Temperature   -20 to +70°C
Dimensions (W x H x D)   309 X 225 X 35 (mm)
  1.59 kg
Protocols
ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L lins, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, FOR USAGM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708V


5

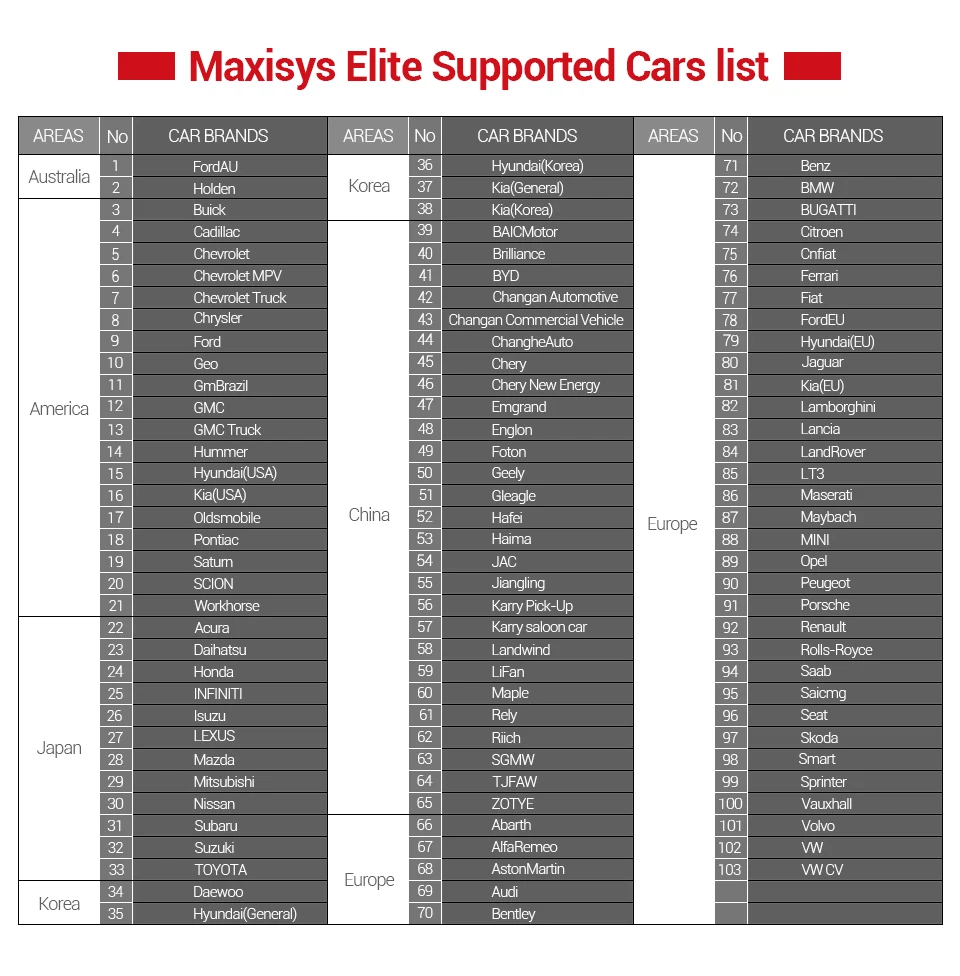

  Maxysis Elite Vehicle List:
FOR AUDI, For BENZ, For BMW, For DACIA, For EU FORD, For AU Ford, For Ford, For Holden, For LANDROVER, For MINI, For OPEL, For PEUGEOT, For RENAULT,
For SEAT, For SKODA, For VW, For VOLVO, For SMART, For JAGUAR, For BENZ SPRINTER, For SAAB, For FIAT, For ABARTH, For LACIA, For ALFA ROMEO, For VAUXHALL,
For MAYBACH, For BENTLEY, For BUGATTI, For PORSCHE, FOR USAGM,  For CHRYSLER, For FORD,SUZUKI, For KIA, For DAWEOO, For ISUZU, For TOYOTA, For SUBARU,  For SCION, For NISSAN,For MITSUBISHI, For LEXUS, For INFINITI, For HYUNDAI, For HONDA, For ACCURA, For MAZDA.
  Comparison between Autel Diagnostic System:
Comparison Maxisys Elite Maxisys MS908P Maxisys MS908 Maxisys Mini MS905
CPU NVIDIA Tegra® 4 1.8GHZ Samsung Exynos Quad 1.4GHZ Samsung Exynos Quad 1.4GHZ Samsung Exynos Quad 1.4GHZ
OS Android 4.4.4 KitKat AndroidTM 4.0 ICS AndroidTM 4.0 ICS AndroidTM 4.0 ICS
SSD HD 32GB 32GB 32GB 32GB
Touch Screen 9.7” 2048X1536 LCD Capacitive 9.7" 1024x768P LED capacitive 9.7" 1024x768P LED capacitive 7.9" 1024x768P LED capacitive
Connectivity USB 3.0/WLAN/BT USB 2.0/WLAN/BT USB 2.0/WLAN/BT USB 2.0/WLAN/BT
Dual Brand Wifi G/N ≥10GHz 2.4 & 5 GHz 2.4 & 5 GHz 2.4 & 5 GHz
Internal Battery Y Y Y Y
Weight 3.5lb 3.12lb 3.12lb 1.54lb
Camera(Rear) 8.0 Megapixel/AF/Flash 5.0 Megapixel/AF/Flash 5.0 Megapixel/AF/Flash 5.0 Megapixel/AF/Flash
Wireless BT VCI USE J2534 USE J2534 Y Y
Optional Lab Scope Y Y Y Y
Optional Video Scope Y Y Y Y
Boot Up Time 15 secs 20 secs 20 secs 20 secs
Autel's Powerful OEM Level Coverage Y Y Y Y
AUTO VIN Technology Y Y Y Y
Maxifix Cloud Based Info System Y Y Y Y
Shop Manager Y Y Y Y
ECU Coding Advanced Advanced Y Y
ECU Flash Porgramming Y Y Optional W/ Maxiflash Kit N
1996-2001 Connector Kit Complete Connector kit Complete Connector kit Complete Connector kit OBDII Connector Kit Optional Connector Kit
J2534 Hardware Included Included Optional N


3

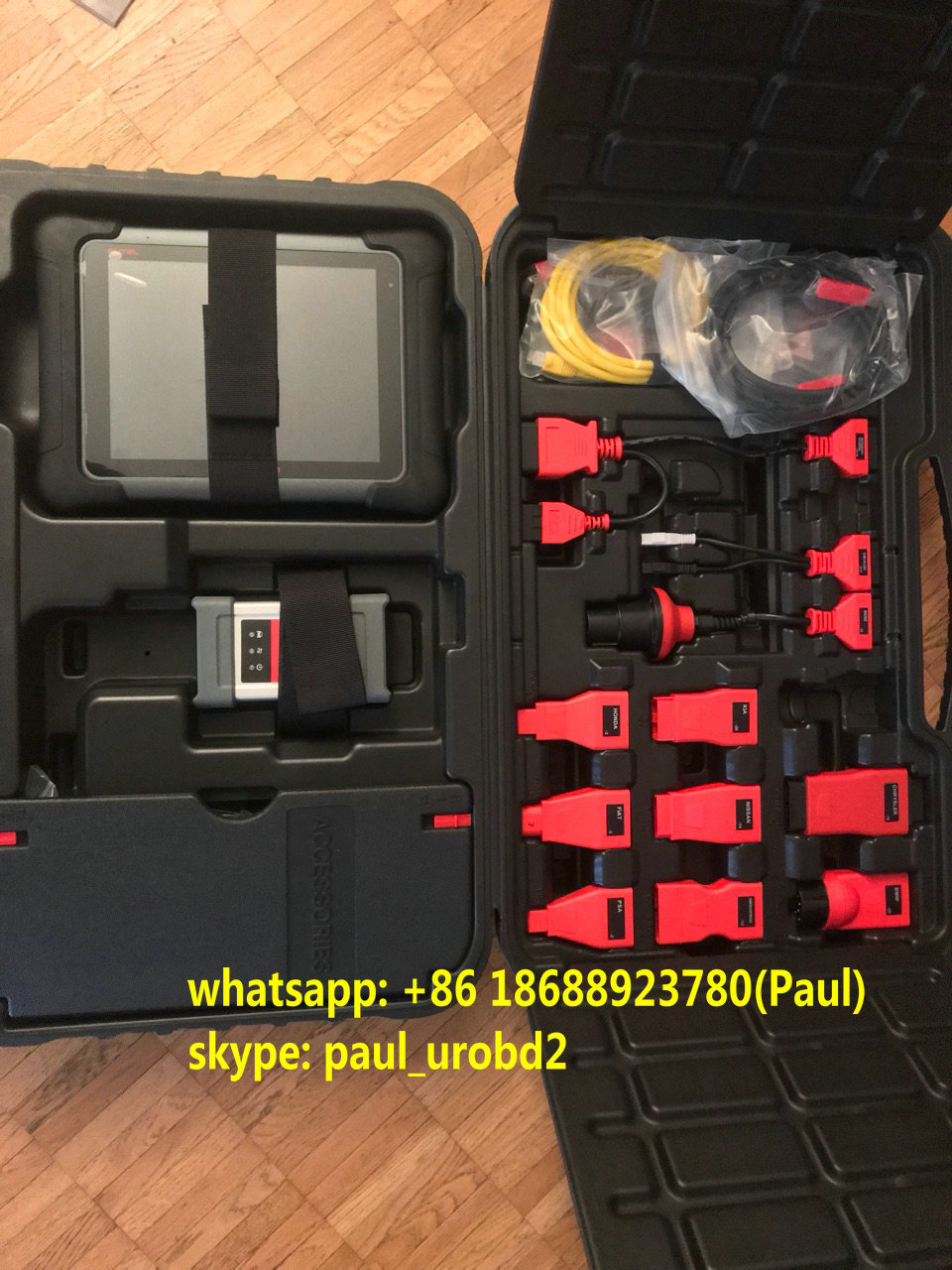

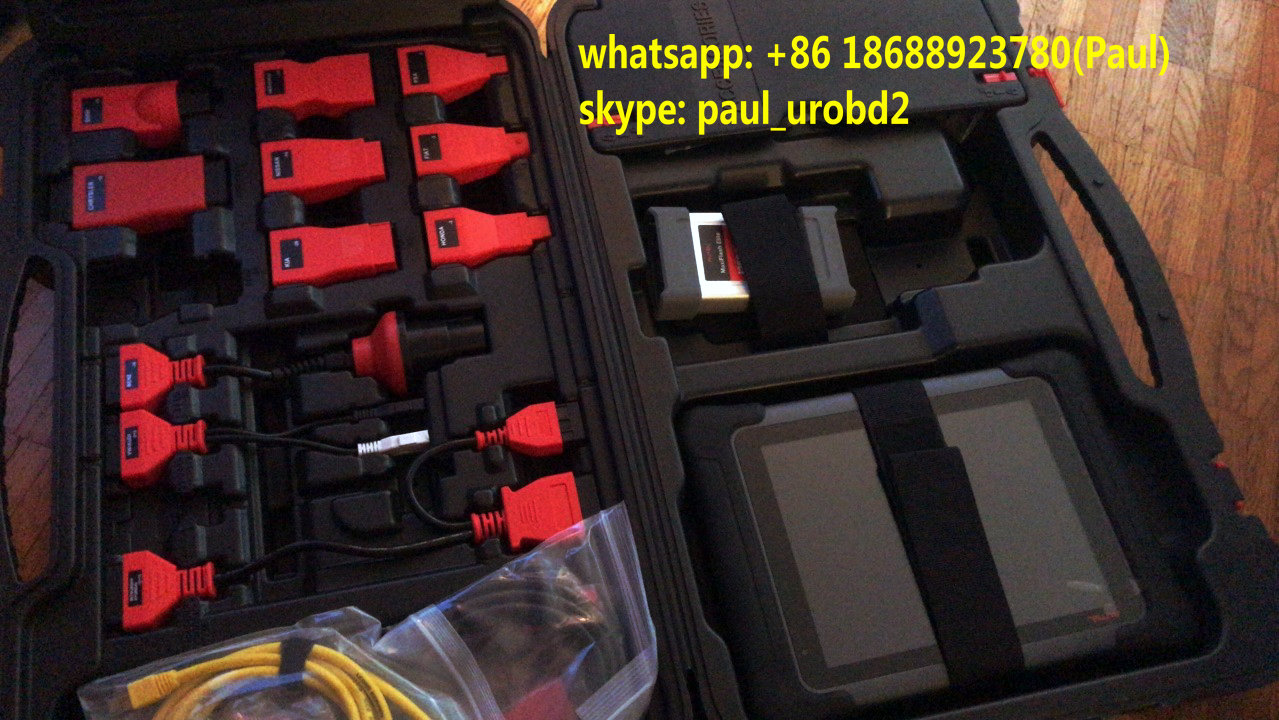

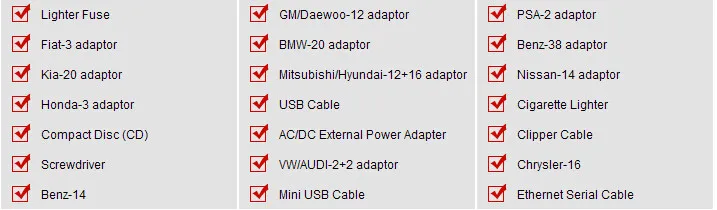

  Package Including:

1pc x Maxisys Elite Interfac:
Accessories as follows:
1pc x Lighter Fuse
1pc x FOR USAGM/Daewoo-12 adaptor
1pc x PSA-2 adaptor
1pc x FOR Fiat-3 adaptor
1pc x FOR BMW-20 adaptor
1pc x FOR Benz-38 adaptor
1pc x Kia-20 adaptor
1pc x Mitsubishi/Hyundai-12+16 adaptor
1pc x FOR Nissan-14 adaptor
1pc x Honda-3 adaptor
1pc x USB Cable
1pc x Cigarette Lighter
1pc x Compact Disc (CD)
1pc x AC/DC External Power Adapter
1pc x Clipper Cable
1pc x Screwdriver
1pc x FOR VW/AUDI-2+2 adaptor
1pc x Chrysler-16
1pc x FOR Benz-14 (Optional)
1pc x Mini USB Cable
1pc x Ethernet Serial Cable
