Product Name:AUTEL MaxiSYS MS906 8 Android 4.0 BT/WIFI Auto Diagnostic Scanner Next Generation of Autel MaxiDAS DS708 Online Update MS906
Product Type:AUTEL MaxiSYS MS906
Product Category:Car Diagnostic Tool
View Count:
Product Description

AUTEL MaxiSYS MS906 Auto Diagnostic Scanner Next Generation of Autel MaxiDAS DS708 Diagnostic Tools

Advantage:

1.Compatiable for diagnosis for part of the original software
2.1 year warranty and 1 year free update online .(After One Year, USA and Canada Customer Update Service 695usd/Year, Other Areas Update Service 500usd/Year)
3. Android 4.0 Operating System for fast boot-up and multitasking
4.Can support wifi. It can update online via wifi,but can not connect the diagnose interface via wifi.

Top 10 reason to get the AUTEL MAXISYS MS906:

1. AUTEL MAXISYS MS906 is next generation of autel maxidas ds708
2. Online Update
3. English language
4. 1 year warranty and 1 year free online update .
5. With Big Screen
6. Run faster than autel maxidas ds708
8. High resolution
9. High hardware configuration
10. AUTEL Authorized Distributor

Language:English Only

Features:

1. Hardware
Extraordinarily powerful Cortex-A9 quad-core processor
9.7” 1,024x768 LED-backlit glossy Multi Touch capacitive display with IPS technology
Internal reliable and fast 32GB Solid State Drive for better performance
Built-in 5-megapixel rear camera with autofocus and flashlight
Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources
Unique shop tough ergonomic design features strong rubber protection and housing;
Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation
USB, audio and auxiliary ports make it easy to connect accessories
The VCI connects to the main unit wirelessly with up to 230 meters working range

2. Software
Open source Android Operating System for fast boot-up and multitasking
Easy and intuitive navigation makes finding what you need simple and fast
Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
Complete capabilities for codes, live data, actuation tests, adaptations
Displays live data in text, graph, analog and digital gauge for easy data review and analysis
Configures display options, sets triggers, records and playbacks results with one touch
Records and playbacks live data to pinpoint troubles of sensors and components
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
Remote technical support for convenient demonstration, training and increased customer satisfaction
Prints out recorded data anytime and anywhere with Wi-Fi technology
Automatic Wi-Fi updates available in new software releases
Operating System

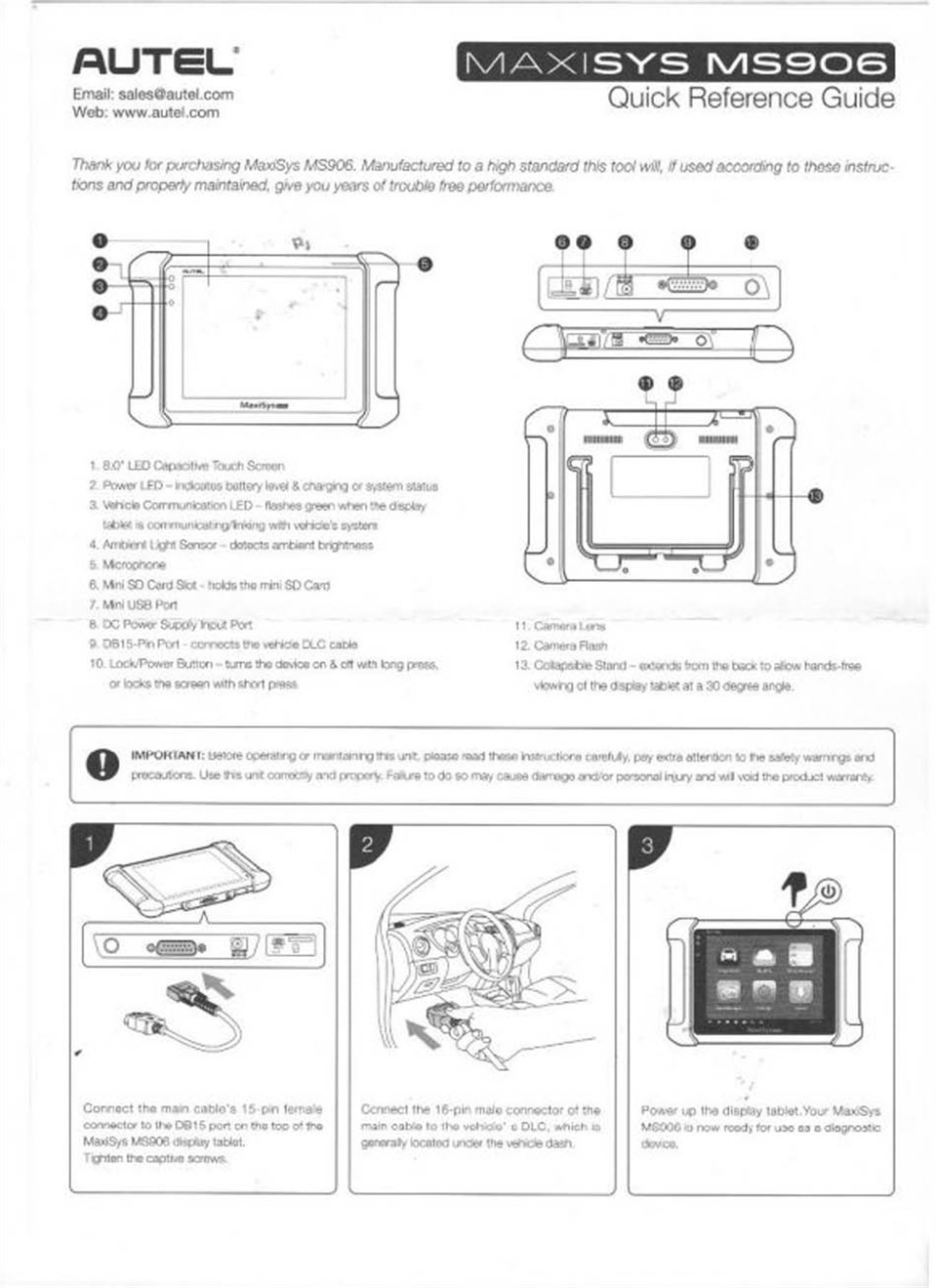

1-3

Specifications:

Operating System AndroidTM 4.0, Ice Cream Sandwich
Processor Samsung Exynos Quad-Core Processor 1.4GHz
Memory 2GB RAM & 32GB On-board Memory
Display 9.7 inch LED capacitive touch screen with 1024x768P resolution
Connectivity Ethernet: RJ45 Ethernet Connection,Cellular: 3G/4G module: WCDMA
Camera (rear) Rear-facing, 5.0 Mexgapixel, AF with Flashlight
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output Microphone, Dual Speakers, 4-Band 3.5 mm stereotype/standard headset jack
Power and Battery 11000 mAh 3.7 V lithium-polymer battery, Charging via 12 V vehicle power
Input Voltage 12 V (9-24 V)
Power Consumption 6.5 W
Operating Temperature -10 to 55 ℃ (14 to 131 ℉)
Storage Temperature -20 to 70 ℃ (-4 to 158 ℉)
Housing Strong plastic housing with protective rubber boot
Dimensions (W x H x D) 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Weight NW: 1.42 kg (3.13 lb), MaxiSys GW: 8.655 kg (19.08 lb) / MaxiSys Pro GW: 8.052 kg (17.75 lb)

Difference between Autel MaxiSYS MS906 and Autel MaxiSYS DS708:

1-4

Attention :

1. MS906 work better and run faster than DS708

2.Autel MaxiSYS Pro MS908P support online ECU coding and online programming(but online programming only available to part original software)
Package Including:

main  unit
Main cable
AC/DC adaptor(12v)
Cigarette Lighter
Lighter Fuse
Honda-3
Nissan-14
Mitsubishi/Hyundai-12+16
Kia-20
Benz-38
BMW-20
VW/AUDI-2+2
Fiat-3
PSA-2
GM/Daewoo-12
Benz-14
Chrysler-16
User Manual
Quick reference guide
Packing List
Compact Disc (CD)
Soft Cloth
Carry case

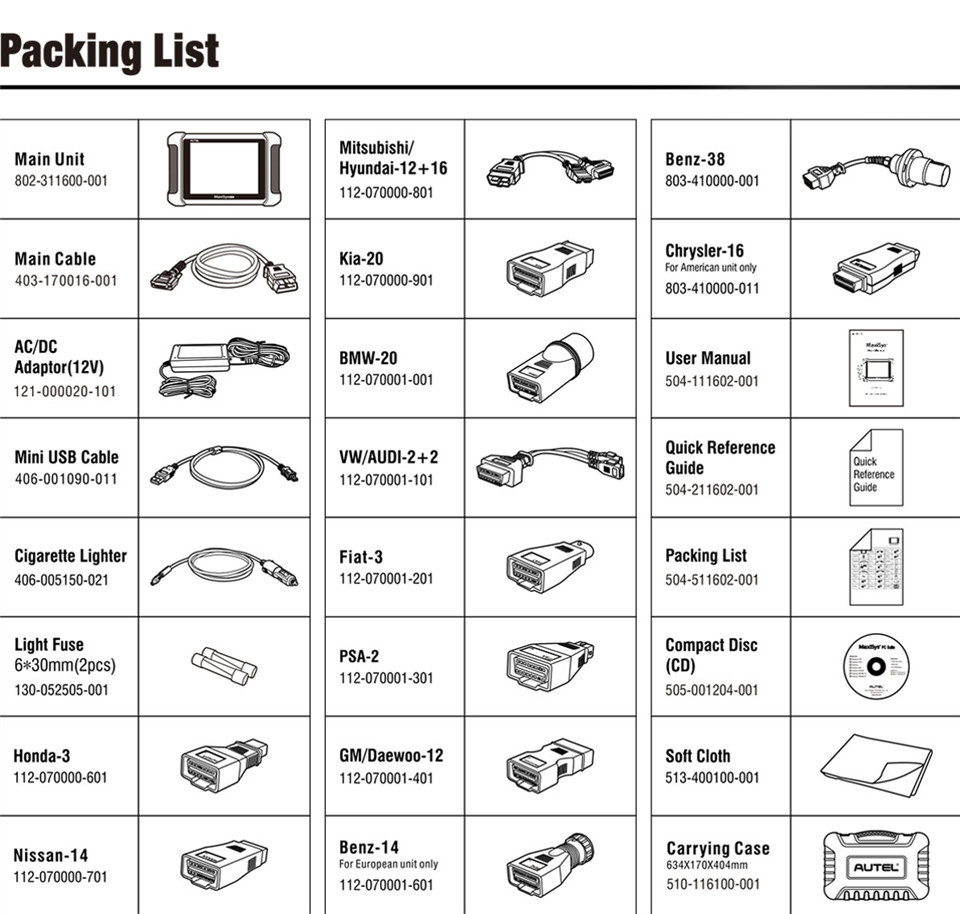

AUTEL MaxiSYS MS906 Package List

 packing list




model list


12345
ms906(1
ms906(18ms906(21
ms906(4ms906(5ms906(7ms906(6ms906(8ms906(9ms906(16ms906(15ms906(14ms906(13ms906(12ms906(11
ms906(17ms906(20ms906(10ms906(19
