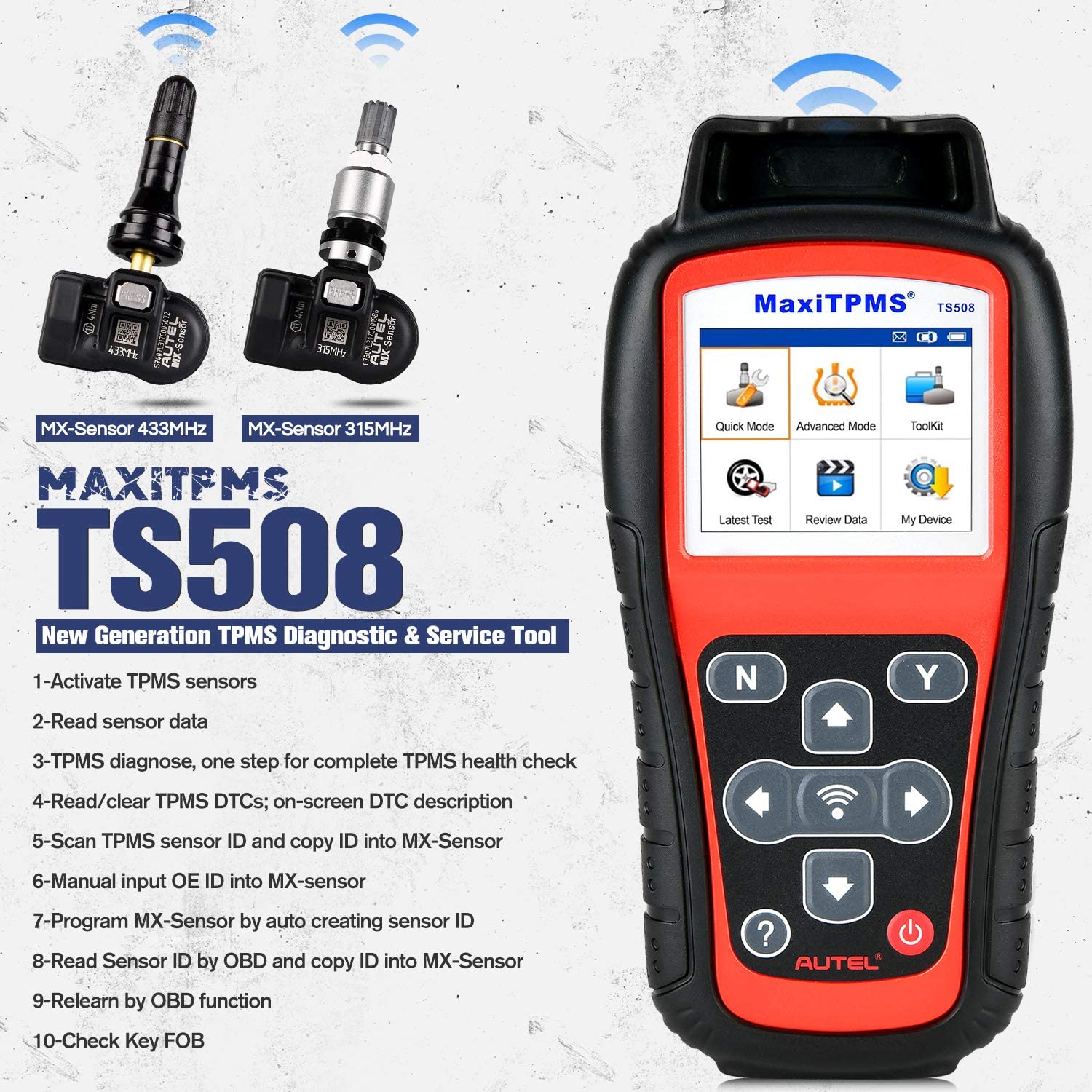

Product Name:Autel MaxiTPMS TS508 Tire Pressure Monitoring System Reset TPMS Replacement Tool with 8pc Sensors
Product Type:Autel MaxiTPMS TS508
Product Category:Popular Garage Tools
View Count:
Product Description



The Autel MaxiTPMS® TS508 is a new generation complete TPMS diagnostic tool specially designed to activate all TPMS sensors, read TPMS sensor status, check TPMS system health, program MX-sensors and conduct TPMS relearn. Based on service type needed, the option to choose a Quick or Advanced TPMS service mode will decrease repair time. The TS508K premium kit includes one tool and 8 MX-Sensors(433MHz/315MHz), to offer a perfect solution for quick TPMS service repair.

Support Languages;

English, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Russian, Italian, Hungarian.
(Please leave the S/N of machine to authorize the language you want after you receive it.)

TS508 TPMS TOOL FEATURES:

- Vehicle Specific Database (Domestic, Asian and European)
- Auto Selection of Frequency for Fast Scanning
- Two TPMS Service Modes to Use
Quick Mode for Fast Installs designed for tire / wheel shops
Advanced Mode To diagnose, repair and replace TPMS for repair shops
- TPMS Status Screens for Easy Diagnosis
- Shows ID matching in color
- Low Sensor Battery Indicator
- Code Notification
- Information - relearn procedures at the touch of help button
- Batch Programming - Program multiple sensors with one touch (up to 16 sensors at a time)
- Programs vehicle ECU to learn sensor IDs and positions
- Activates ALL magnetic, frequency and tire deflation triggered sensors using 125Khz continuous or modulated waive signals
- Receives both 315MHz and 433MHz signals
- Reads / writes sensor IDs from vehicle ECU
- Reads / clears DTC's of TPMS and resets Malfunction Indicator Light
- Programs Autel MX-Sensors 315MHz or 433MHz wirelessly
- Checks Remote Keyless Entry (Key FOB) for transmissions
- Reads Data including sensor IDs, tire pressure, temperature, battery condition.
- OEM Part number and relearn information
- Displays different sensor relearn procedures for different OEM sensors
- OEM sensor information display based on vehicle Make/Model/Year
- Displays OBD locations for test vehicles
- Pre-selection process offers faster activation and diagnostics
- Provides visual and audible responses to confirm sensors are working properly
- On-screen code definitions
- Incredibly easy-to-use with intuitive navigation and step-by-step on-screen instructions
- Proper LF signal to prevent being fooled by other RF signals
- Built-in rechargeable 3.7 v Li-polymer battery
- Automatic power-off to preserve battery life
- Multilingual support: English, French, Spanish, etc.
- Free Lifetime updates on the internet using USB port
- Ergonomic design features strong housing and protective rubber boot
- TFT Color Display (320 X 240 dpi)
- 8.0" LED Capacitive touchscreen with 1024 X 766P resolution

Specifications:

Battery Life: ≥5 years
Operating Temperature: -40°C to +125°C
Storage Temperature: -40°C to +150°C
Operating Humidity: 90%
Operating Frequency: 433 MHz/315MHz
Pressure Monitoring Range: 100 to 900 kPa
Pressure Reading Accuracy: ±10 kPa
Temperature Reading Range: -40°C to +125°C
Temperature Reading Accuracy: ±5°C
G Sensor Reading Accuracy: ±15%
Transmission Power: 5-8 dBm
Battery: 3.0 V
Dimensions (W x H x D): 54.2 mm x 29.4 mm x 19.1 mm (Snap-in Sensor)
Weight (Without Valve): 15.6 g (Snap-in Sensor)

Packing Included:

Bundle1: Only TS508
1xTS508 TPMS scanner
1 x OBD II Cable
1 x USB Cable
1 x Magnet
1 x AC Adapter
1 x Carry case
1 x User manual
1 x Free Software Updates-Lifetime

Bundle2: TS508K
1xTS508 TPMS scanner
1 x OBD II Cable
1 x USB Cable
1 x Magnet
1 x AC Adapter
1 x Carry case
1 x User manual
4 x 2in1 315/433MHz MX-Sensors
1 x Free Software Updates-Lifetime



How to use the MX 2IN1 Sensor
