Product Name：Xhorse Dolphin XP-005 Automatic Key Cutting Machine Work on IOS & Android with Built-in Battery
Product Type：Xhorse Dolphin XP-005
Product Category：Locksmith Tool
View Count：
Product Description



Xhorse Dolphin XP-005 Automatic Key Cutting Machine




Xhorse DOLPHIN XP-005is developed especially for the automotive business, offering timely and portable solutions for locksmiths who frequently provide outdoor and roadside services.It has a quality and distinctive look and has been designed to make your works more comfortable and practical.

The dolphin XP-005 brings you an excellent experience for cutting car keys and house keys. Our Technical Support Team kindly provides you lifelong free software upgrade service and lifelong online technical support for free.



Its compact design, high-quality materials, and operative details have been engineered to respond to the needs of locksmiths:



[√]APP-guided key cutting procedures;

[√]Ergonomic lifting handle, smooth and effortless;

[√]Compact dimensions and clean-cut design;

[√]Built-in Lithium Battery; Support 60~100 keys cutting in a full charge;

[√]Configured protective shield；

[√]Multifunctional clamps for cutting Sided, Track, Tibbe, and other special keys.

[√]Technical online support for free;

[√]Online software upgrade service for free;









CONTENTS

1. PN Information

2. Parameters

3. Main functions

4. User Manual (Detailed)






1. PNInformation




DOLPHIN XP-005          -- PN: XP0501EN



2. Parameters



  • Power                                        100W

  • USB Port                                   USB 2.0

  • Power Parameter                     12~24V

  • Motor Torque                             0.15Nm

  • Working temperature             -10~50℃

  • Working Humidity                  10%~90%

  • Battery Capacity                      64.75W.h

  • Standby Power                         15W

  • Motor Rotation Speed            10000-13000rpm

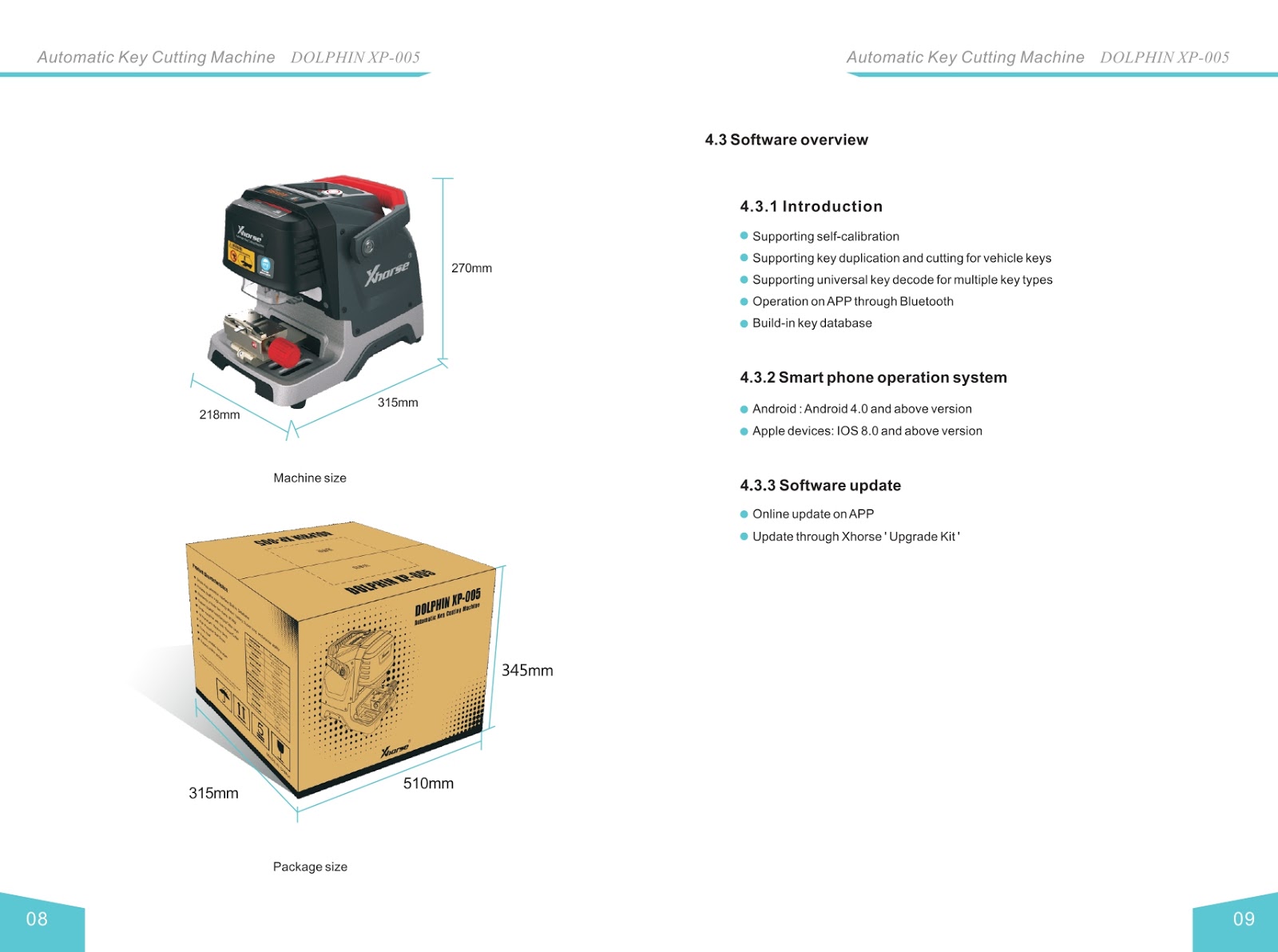

  • Machine Dimension                315x218x270mm

  • Package Dimension                510x315x345mm

  • Net Weight                                15kg

  • Gross Weight                            18kg

  •

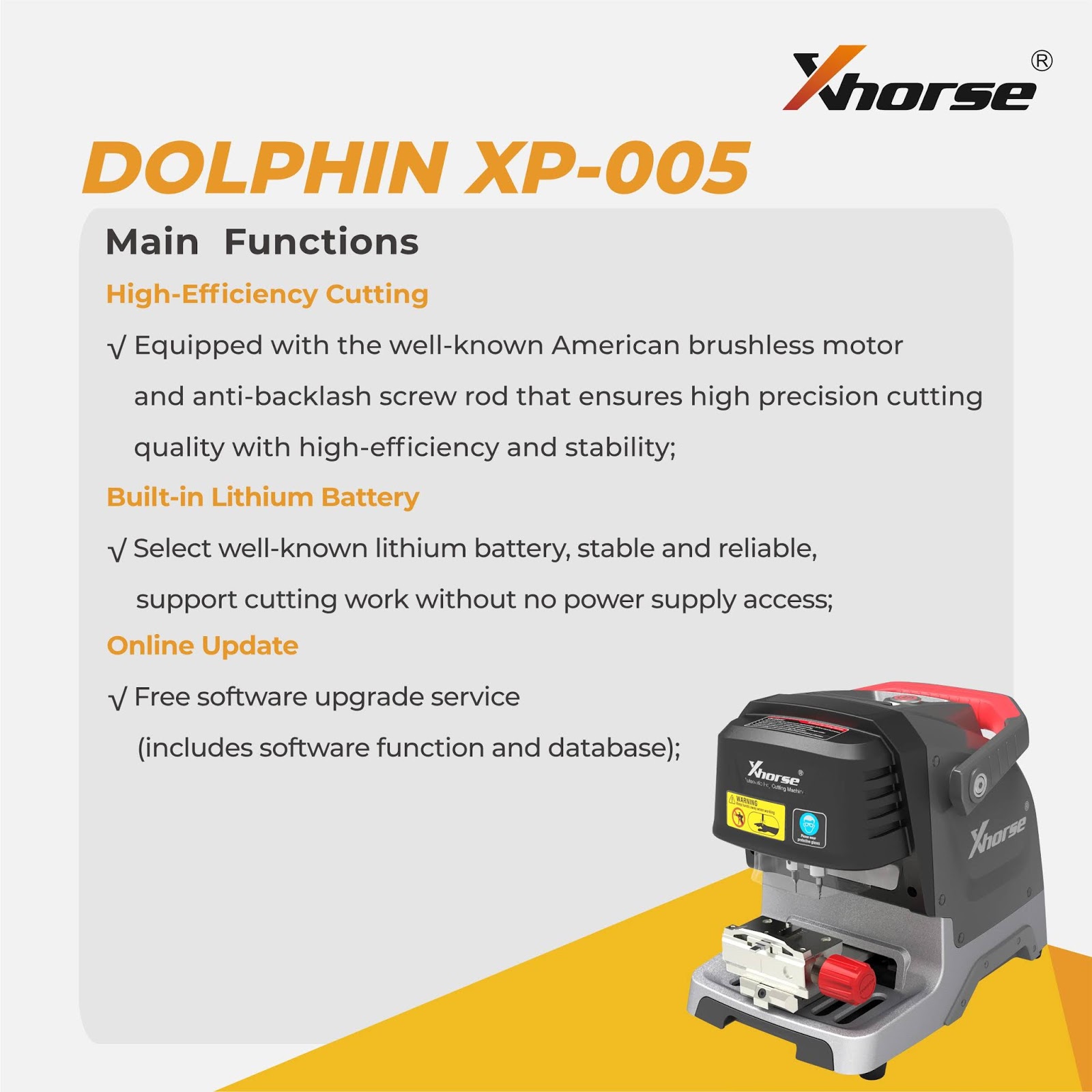

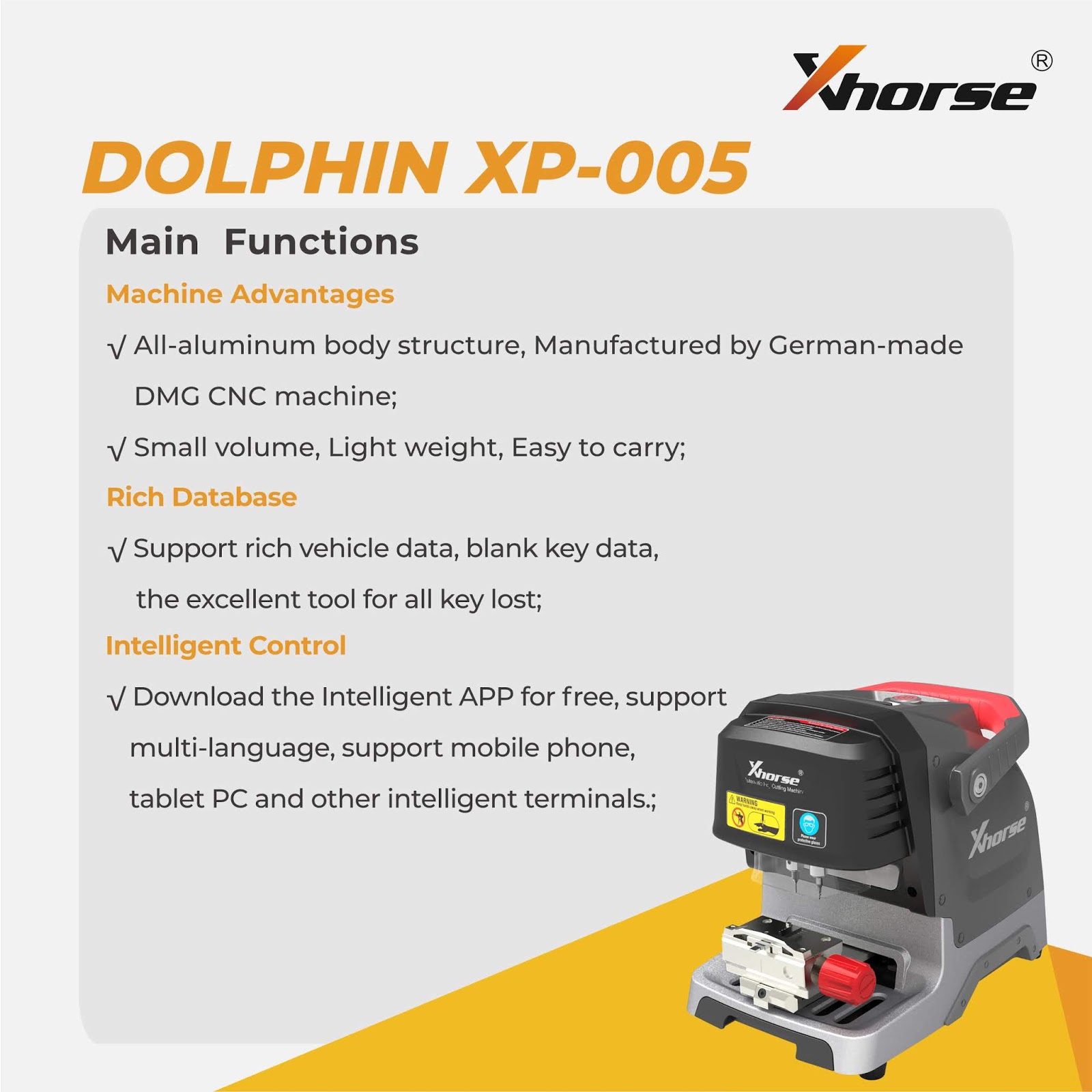

3.Main functions







Its compact design, high-quality materials and operative details have been engineered to respond to the needs of locksmiths:

Machine Advantages

All-aluminum body structure, Manufactured by German-made DMG CNC machine;
Small volume;
Lightweight;
Easy to carry.


Rich Database

Support rich vehicle data, blank key data, the excellent tool for all key lost.


Intelligent Control

Download the Intelligent APP for free, support multi-language, support mobile phone, tablet PC and other intelligent terminals.


High-Efficiency Cutting

Equipped with the well-known American brushless motor and anti-backlash screw rod that ensures high precision cutting quality with high efficiency and stability.


Built-in Lithium Battery

Select well-known lithium battery, stable and reliable, support cutting work without no power supply access.


Online Update

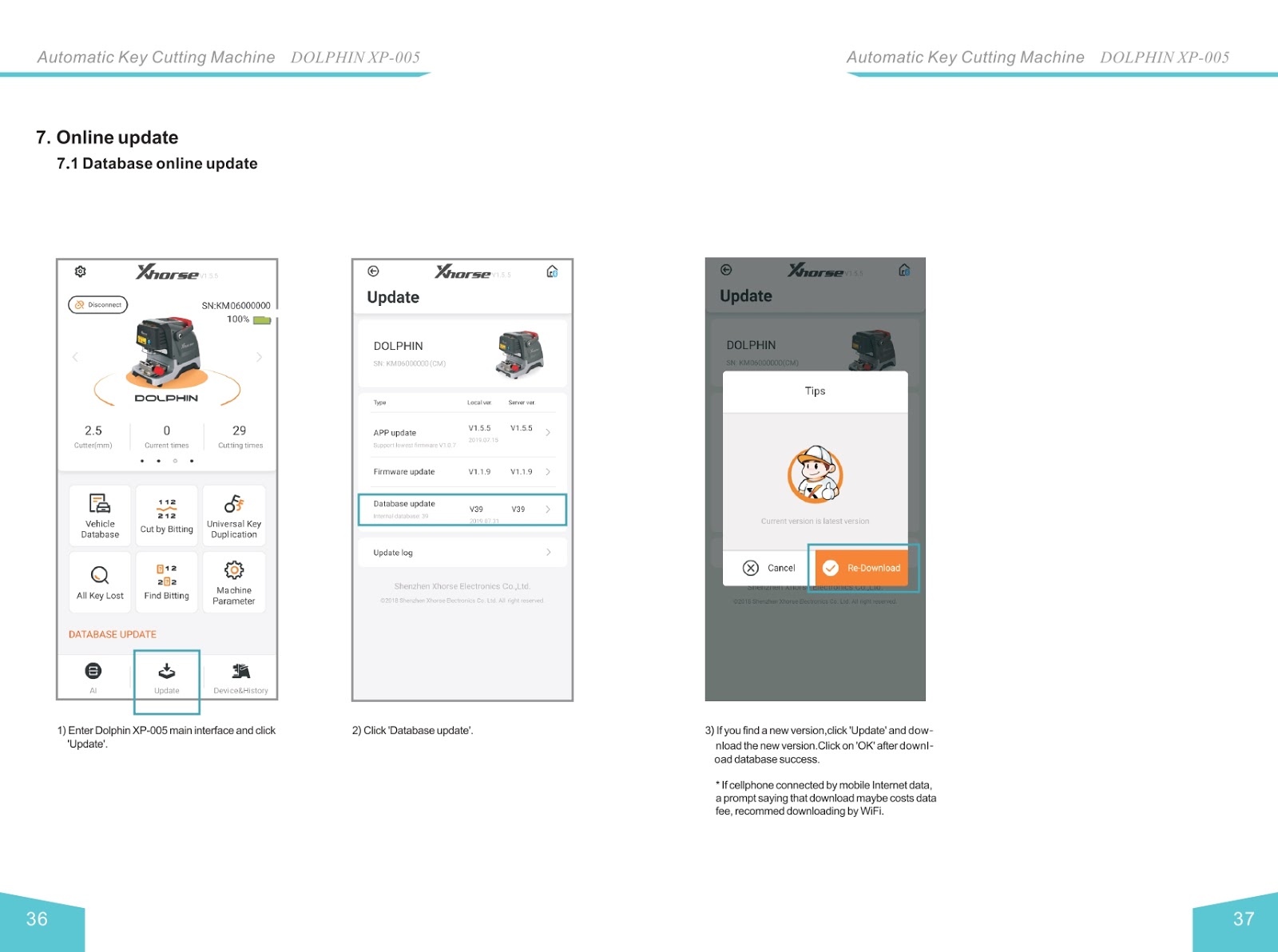

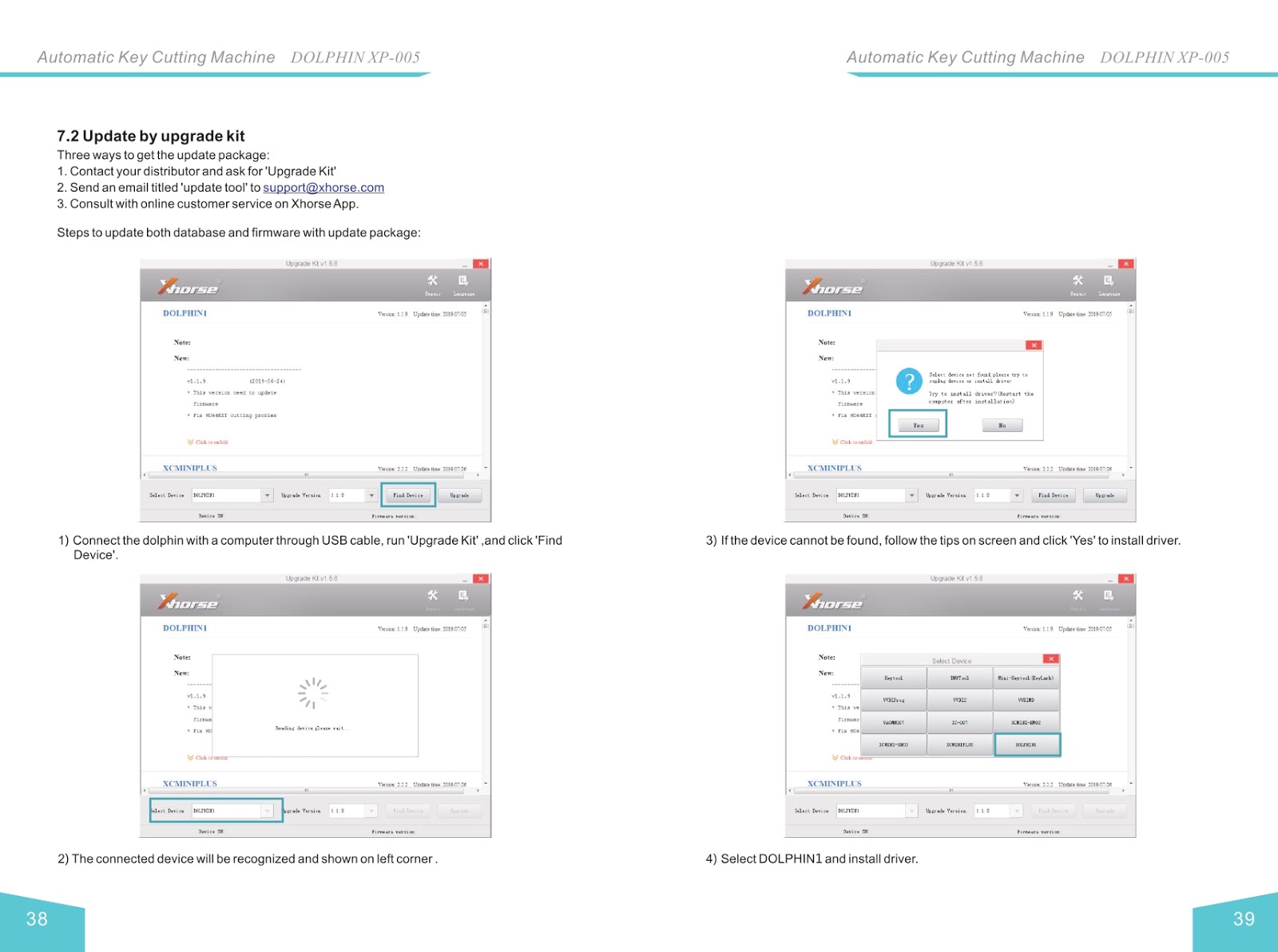

Free software upgrade service(includes software function and database )

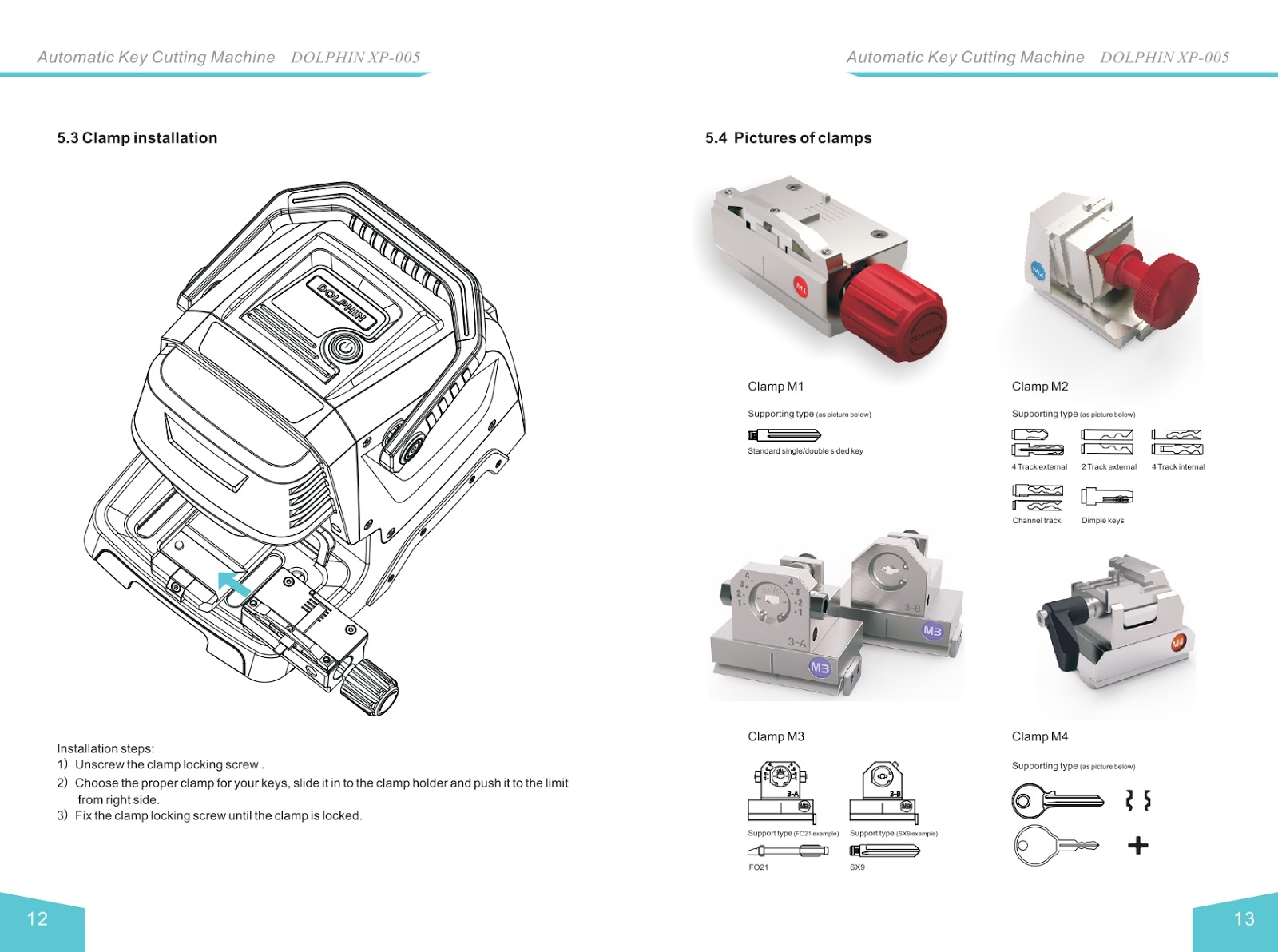

Multifunctional Clamps

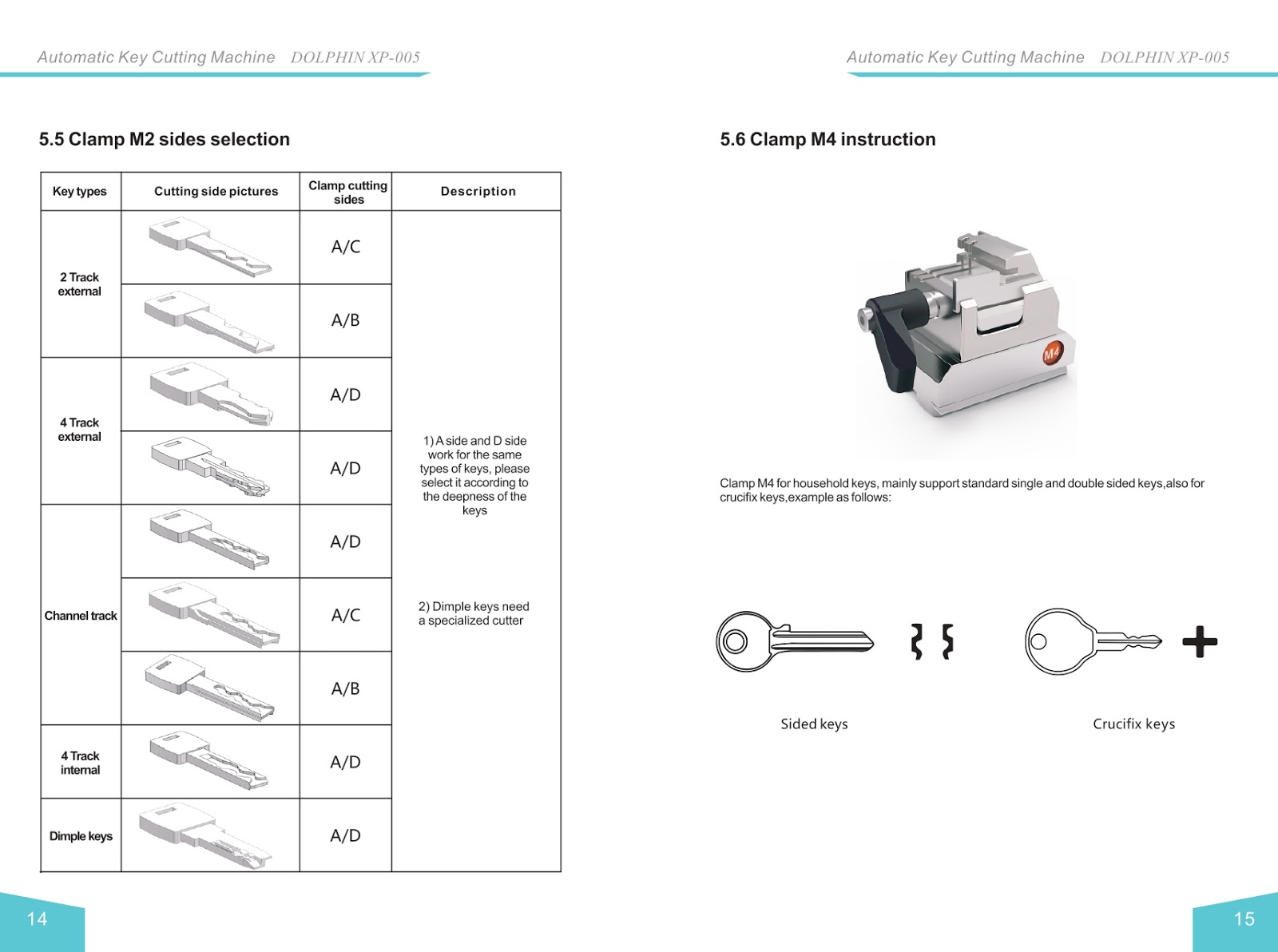

Standard equipped clamps M1 and M2, which can support multiple key types of processing such as side, track, and tibbe. Optional clamps M3 and M4, Clamp M3 is appropriate for duplication and processing of F021 & Citroen SX9 keys; Clamp M4 is appropriate for processing and duplication of House keys.


Technical Support

One-year warranty;
The professional online service team;
Lifelong provide technical support for free.






4.User Manual （Detailed）



To get thePDF file of User Manual,please kindly
e-mail to xhorseonline@163.com
















































Condor XC-Dolphin vs Condor XC-Mini Comparison







Condor XC-Dolphin key machine is an entry-level product of the CONDOR CNC machine family. The body design is simple, it is very suitable for mobile use in the mobile scene, without operating screen, you need to connect a mobile phone or tablet, and install a dedicated APN.



index

XC-DOLPHIN

Condor XC-MINI

Spindle

Mechanical shaft +60W DC motor (with a foreign model)”

“Electric spindle brushless 300W, built-in angular contact bearing

Electric spindle brushless 300,

built-in angular contact bearing

Transmission mechanism

“T-shaped screw + anti-backlash nut

Ball screw

guide

Roller guide

Cross-track

shell

Base aluminum alloy die-casting, the upper body is made of plastic

shell and the body is made of integrated aluminum alloy die-casting.

Plastic outer casing body is formed by

body alloying die casting

Fixture

Standard fixture

Two sets of standard fixtures

Manipulation

No touch screen, no built-in database

Quick start, with touch screen,

built-in database

Offline operation

not support

stand by

Dedicated app

Support dedicated mobile phone APp

Support dedicated mobile APP

Built-in battery

Not supported, optional external battery

stand by

protecting mask

Simple protective cover

Comprehensive protection

VVD binding

not support

stand by

Cutting speed

1X SPEED

2X SPEED

weight

17kg

18kg

Warranty

1 year

3 years

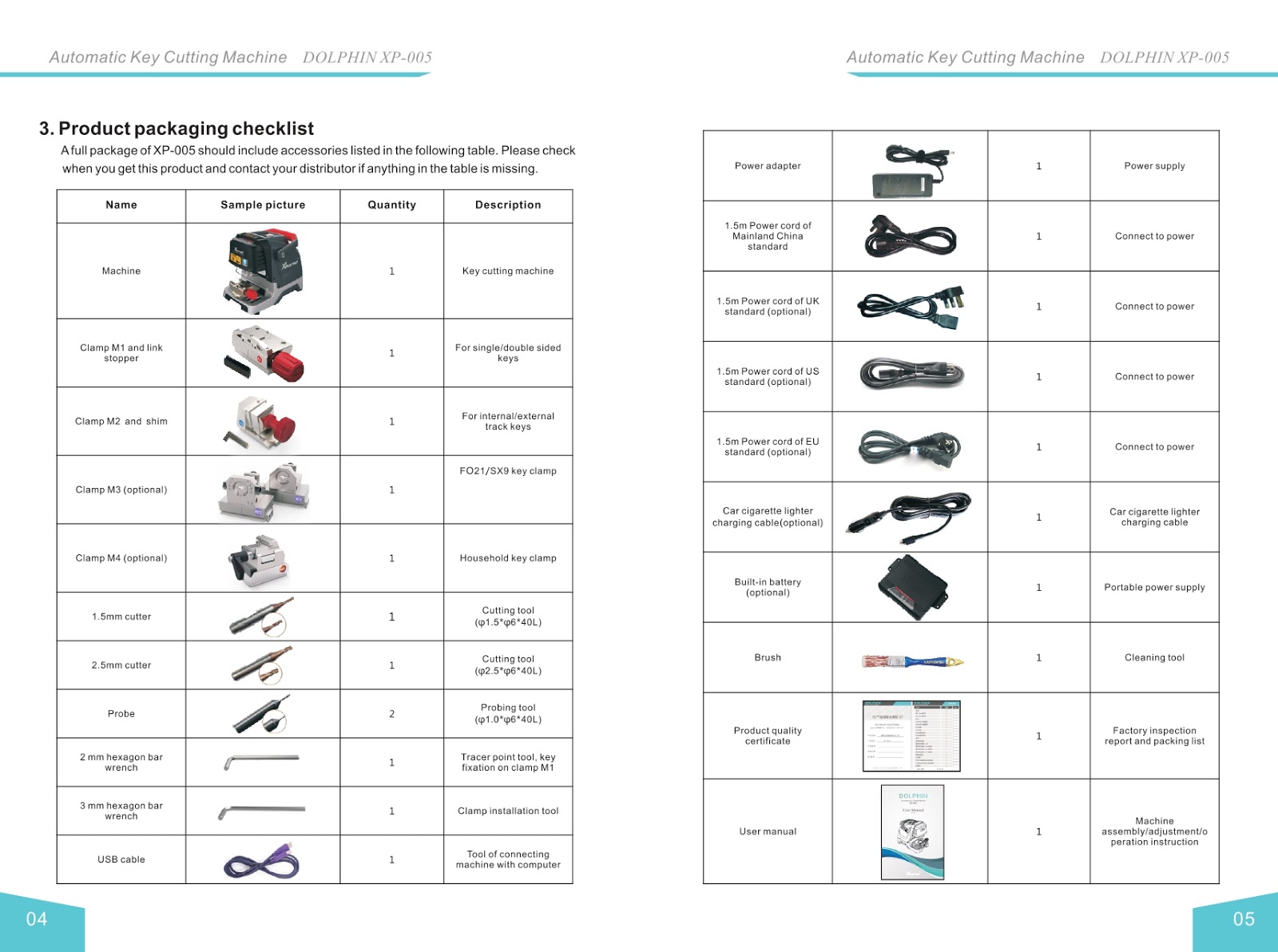

Condor Dolphin XP-005 Package List:


1pc x Condor Dolphin Main Machine
1pc x 2.5mm cutter
1pc x 1.5mm cutter
2pc x Probe
1pc x 2mm Hexagon bar wrench
1pc x 4mm Hexagon bar wrench
1pc x Power Adapter
1pc x Brush
1pc x Clamp M1 & Link Stopper
1pc x Clamp M2 & shim
1pc xClamp M3(Optional need to pay)
1pc xClamp M4(Optional need to pay)
1pc x Product Quality Certificate
1pc x User Manual
